CLICK HERE TO SEE THE EASY INSTALLATION PROCEDURE

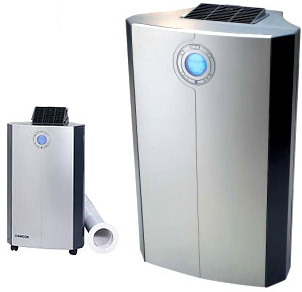

The Amcor PLM14000EH portable air conditioner is
designed to COOL OR HEAT an average-sized
room up to 350-450 Sq. Ft. depending upon room insulation and number of heat sources in the room. (Will heat as per 4,300 heating BTU's (electric heater))
Patented Evaporative Booster
Technology - During the cooling
process, water is extracted from the
air as it passes through the unit. Most
of this water is used to cool the unit
and make it run more efficiently. This
unit has a built-in water tank (not
removable) with a drain outlet. When
the tank fills, the compressor stops
running. This indicates that the tank
should be emptied. Included with the
unit is a window mounted exhaust kit.
AC must be vented via exhaust hose and
window kit (included).
Note: If your room
has a heat source such as direct sunlight
or computer servers, the AC coverage
area may be reduced.
Features
- 14,000 BTU cooling power
- 4300 BTU heating power Will Heat as per 4,300 Btu's - Electric Heating
- Unique Patented Evaporative Booster for more efficient cooling

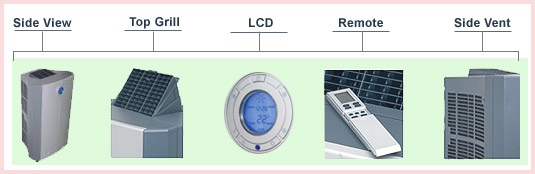

- Backlit LCD control panel
- 3 speeds (2 fan plus one turbo)
- 3M Filtrete filter: removes dust, pollen, bacteria and animal dander
- Activated carbon filter helps remove odor
- Washable air filter collects large dust particles and prevent bacteria build-up
- Built-in castors for easy moving
- Full thermostat control
- Programmable timer (24 hours)
- Adjustable louvers to control air flow
- Extendable exhaust hose (up to 5 ft.)
- Adjustable louvers to control air flow
- Remote control with LCD display
- Power Consumption Cooling: 1100W/9.8A
- Moisture Removal: 80 pints per day
- Thermostat Range: 64F ~ 90F
- Power Supply: 120V / 60Hz / 1 Phase
- Max Room Size: up to 450 sq.ft.
- Refrigerant: R22
- Dimension: 20”W x 16”D x 33”H
- Weight: 87 lbs.
|
EASY 5 MINUTE INSTALLATION
Specifications – PLM 14000 EH |
Cooling capacity |
14,000btu / hour |
Heating capacity |
4300btu / hour |
Cooling Power Consumption |
9.8 A |
Air volume |
294.3 cfm |
EER RATING |
12.73 |
Moisture removal |
80 pints / day |
Window kit material |
Plastic |
Thermostat |
64 ~90°F |
Control |
LCD with remote |
EER |
12.73 |
Power supply |
115 V / 60Hz / 1 Phase |
Max room size |
425 sq.ft. |
Timer |
0 ~ 24 hours |
Fan speeds |
3 |
Compressor |
rotary |
Refrigerant / Load |
R22 / 15.5 oz |
Exhaust pipe max length |
5 ft. |
Exhaust pipe diameter |
5 in. |
Window kit length |
Max: 48 in. (Additional window kit can be ordered for larger windows/doors) |
Product dimension (L x W x H) |
19.5 x 17 x 32.5 in. |
Package dimension (L x W x H) |
24.5 x 21.5 x 36.5 in. |
Net weight |
75 lbs. |
Gross weight |
90 lbs. |
 |
EASY INSTALLATION SETUP

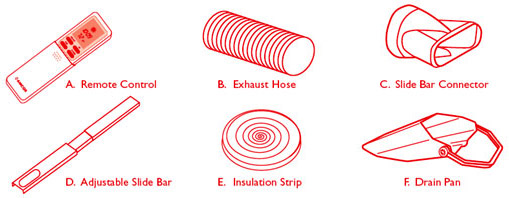

When you open the package, you can place all the package content on the floor and make sure you have everything before you start. Below is an easy demonstration of how you can setup an air conditioner in few minutes. BELOW IS AN EXAMPLE OF GENERAL SETUP MOST COMMONLY USED WITH MOST OF THE PORTABLE AIR CONDITIONERS. Depending on which air conditioner you choose to buy product design and window kit may vary but setup process will mostly be almost same. Below example is for windows that open vertically, but same method is used for any horizontal opening windows or glass doors. Also, same setup is used for WALL installation.For crank windows you can use the same setup as well but with few additions. Please Note: Not every portable AC comes with a wall kit. Email us before purchasing if you need a wall kit. |
 |
This is your exhaust hose. One end of this hose connects to the AC and the other end of the hose connects to the window. |
 |
This is the window strip which is extendable upto 48 inches. This size of window strip is sufficient for most of the windows. If your window is wider than 48 inches you can always buy an additional window strip for $15-$30. |
 |
This is a wall connector and you need this ONLY IF you decide to install the hose through the wall.You DO NOT need this if you will exhaust the hose through the window.Please mention in your notes with your order if you need this. So we can add it in your package FREE. NOT EVERY PORTABLE AC COMES WITH A WALL KIT, BUT THERE ARE EASIER WAYS TO STILL RUN THE HOSE THROUGH THE WALL USING FOAM SEALER ($5) AND A FLAP THAT CAN BE BOUGHT FROM ANY STORE LIKE HOME DEPOT. Email us before purchasing if you need wall kit with any portable AC. |
 |
This is a connector which is used to connect the hose on one end and connect the window strip on other. |
 |
Now lets get started with installation.
Let's assume this is the window you want your hose to exhaust through. |
 |
Raise the window slightly, enough so the window strip could be placed in the gap. |
 |
This is how you will place the window strip in the opening. |
 |
Lower the window enough to touch the window strip. Make sure that there is no gap left between the window and the window strip. |
 |
Now connect one end of the hose to the AC connector |
 |
Then connect other end of the hose to the window strip connector. |
 |
Once both ends of the hoses are connected, it should look like this. |
 |
Now snap this end to the window strip |
 |
Once snapped it should look like this |
 |
Then snap the other end to the back of the AC as per the image on the left. |
 |
This is how it will look once snapped. |
 |
Once hose is snapped on both ends, it should look like this.
This is it!!!
You Are All Done In Few Minutes!!!
|
FINAL SETUP WILL LOOK SOMETHING LIKE BELOW PICTURES |
|
EASY NANOMIST INSTALLATION SETUP
Nanomist - How it Works!
|
