The Daikin Aurora Series is a perfect multi-zone mini split system for cold weather climates. It features a heating operating range of -13°F up to 60°F and cooling range from 14°F to 114.8°F (with optional drain pan heater). These expanded temperature ranges help to make this tri-zone system a great solution as a primary heating and cooling source almost anywhere in the USA.
A mini split system is an excellent way to add air conditioning to separate areas of your home or office. Whether you have just added an additional room or don't have central air, with the 3MXL24RMVJU Aurora Series with Enhanced Capacity Mini Split System you can heat and cool up to three separate areas of your home or light commercial space at one time. Simply choose two or three indoor units based on your individual needs and before you know it, you will have cooling and heating in your space when and where you want it.
The MXL Aurora Series system, with inverter technology, works with CTXS and FTXS Standard Wall units, the Emura Series Wall units FTXR, the Vista Series FFQ Ceiling Cassette units, FDXS Concealed Duct units, and FVXS Floor units. Depending on the indoor units you choose, with the 3MXL24RMVJU outdoor unit you will be able to achieve energy efficiency levels of up to 18.0 SEER, 12.7 EER, and 12.5 HSPF. Comfort control with added savings! When connected to all non-ducted units, the Aurora MXL Series is also Energy Star Rated.
With Daikin's new enhanced capacity Tri-Zone solution, any three rooms can be controlled individually. It also offers up to 100% Heating Capacity with temperatures as low as 5°F and 100% Cooling Capacity when it is as hot as 104°F. The 3MXL24RMVJU Tri-Zone is rated for 24,000 BTU Cooling Capacity and must be connected to a minimum of two and a maximum of three indoor units. The combined BTU ratings of the units chosen can total up to a maximum connected BTU rating of 39,000 BTUs.
The Daikin 3MXL24RMVJU incorporates technology which allows you to connect higher BTU indoor units than its 24,000 BTU capacity. This will allow you to address higher load needs that are used at different times such as living spaces and sleeping spaces. Based on the square footage of the rooms you are conditioning, you may need a 15,000 BTU unit for your living room, a 9,000 BTU unit for your bedroom and a 15,000 BTU unit for the rec room in the basement. With the Aurora Series, you can connect all of these to the 24,000 BTU 3MXL24RMVJU outdoor unit. The system will allocate the required BTUs needed in each area up to the total of 24,000 BTUs. Let's say you need to condition the rec room during the day. No one will be in the living room or the bedroom at this time so you have these zones shut off. When you turn on the system in the living room, the Daikin technology will supply the required BTUs to the living space up to the maximum output of the 15,000 BTU indoor living room unit. A short while later you decide to get the bedroom ready so you turn on the bedroom zone. The system will distribute power to the zones as needed. If all three zones need full power, then each zone will split the 24,000 BTU respectively, based on each unit's own capacity. For example, the 9,000 BTU unit will use approximately 6,000 BTUs while each of the 15,000 BTU units will use approximately 9,000 BTUs per zone. If one zone needs more or is shut off, the system will adjust accordingly.

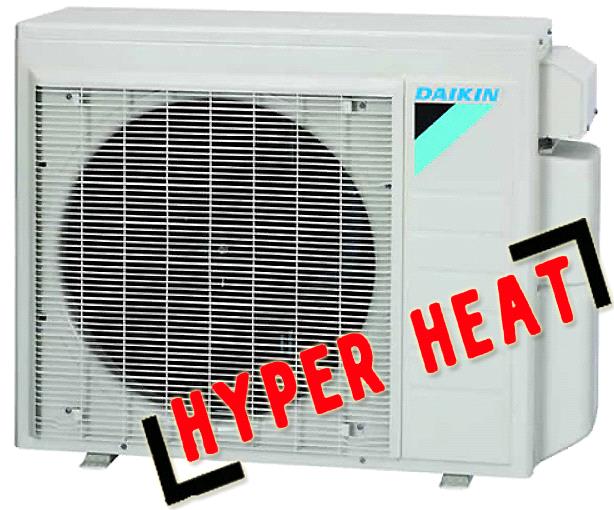

The 3MXL24RMVJU Aurora Series outdoor inverter "variable speed" compressor features a space-saving design and quiet operation. With Reactive Temperature Monitoring, once you set your temperature, the system will automatically adjust output according to the condition requirements. It uses R410A refrigerant, the industry standard. It also includes anti-corrosion treatment of the outdoor Heat Exchanger Fin.
