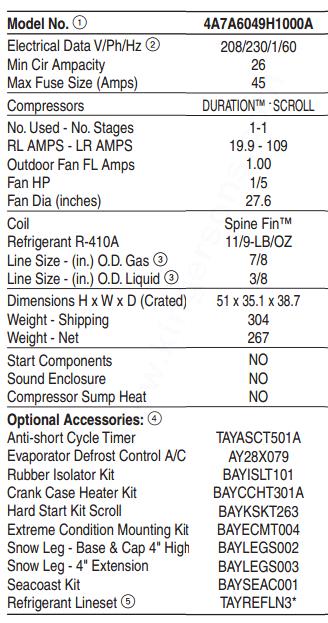

Processing. Please wait. Brand: American Standard Save Listing| Email Listing | Share Product Name: 4A7A6049H1000 TEM4A0C48S41SA American Standard Air Conditioner 4 ton SEER 16 Trane Item#: 4A7A6049H1000 TEM4A0C48S41SA Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - 4A7A6049H1000 TEM4A0C48S41SA American Standard Condenser - 4A7A6049H1000 The A.S. 4A7A60 Silver 16 Air Conditioner is fully charged from the factory for up to 15 feet of piping. This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified. The unit is certified to UL 1995. Exterior is designed for outdoor application. The compressor features internal over temperature, pressure protection and total dipped hermetic motor. Other features include: Centrifugal oil pump and low vibration and noise. An unbeatable combination of value and reliability, Silver Series air conditioners feature Spine Fin coils and Duration single-stage compressors, providing powerful cooling with the reliability you expect from A.S..Standard Features: DURATION™ compressor Efficiency up to 17.0 SEER All aluminum SPINE FIN™ coil WEATHERGUARD™ fasteners EASY-SESS™ cabinet, service access and refrigerant connections with full coil protection DURABASE™ base, fast complete drain, weatherproof COMFORT-R™ mode approved Glossy corrosion resistant finish Internal compressor high/low pressure & temperature protection 018, 024 & 030 ship with start kit Liquid line filter/drier Spinnaker gray cabinet with high contrast badge and cap High pressure switch Service valve cover R-410A refrigerant S.E.E.T. design testing 100% line run test Low ambient cooling to 30°F with AY28X079 Low ambient cooling to 55°F as shippedCabinet Features: Unit casing is constructed of heavy gauge galvanized steel Painted with a weather-resistant powder paint finish on all louvered panels and the fan top panel The corner panels are prepainted All panels are subjected to our 1,000 hour salt spray test The base is made of a CMBP-G30 weatherproof material to resist corrosion Condenser Specifications American Standard Air Handler - TEM4A0C48S41SA-Painted metal cabinet with captured foil face insulation-2% or less air leakage-R-4.2 Insulating Value-Multi-Position UP/Down Flow, Horizontal Left /Right-ALL Aluminum Coil with Enhanced Patented Coil Fin-Electric Heaters with polarized plug connections (sold as accessory)-R-410A Thermal Expansion Valve-ECM Motor (3.5 – 5 Ton Models )-Low Voltage Pigtail Connections-Draw Through Design-Horizontal Drain pan-Single Color-Fused 24V Power-1 year warranty-10-year warranty registered-Optional extended warranty available • AIR HANDLER Specifications Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 3 + 7 Send Shop for American Standard and browse manuals and details of 4A7A6049H1000 TEM4A0C48S41SA AC Repair Seattle, WA HVAC Contractors Blue Springs, MO Duct Cleaning Santa Barbara, CA HVAC Contractors Middletown, OH Home AC Repair Chula Vista, CA Certified Electrician Oceanside, CA Top Watch This Item Your Phone Number: Your Email: Message here: Make an offer Quantity you would like to buy: 1 2 3 4 5 6 7 8 9 10 How much would you like to pay for each unit: Type your Message: Shipping Address: URL of the website where you saw cheaper price Or better deal: Your email address: Your phone number: E-mail a friend about this item Your friend email: Your Email: Message here: Email For Price Your Phone Number: Your Email: Shipping Zip Code: How soon do you need this product?: Immidiately Within a week Within couple of months Just looking for price Message here:
Brand: American Standard Save Listing| Email Listing | Share Product Name: 4A7A6049H1000 TEM4A0C48S41SA American Standard Air Conditioner 4 ton SEER 16 Trane Item#: 4A7A6049H1000 TEM4A0C48S41SA Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required
Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - 4A7A6049H1000 TEM4A0C48S41SA American Standard Condenser - 4A7A6049H1000 The A.S. 4A7A60 Silver 16 Air Conditioner is fully charged from the factory for up to 15 feet of piping. This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified. The unit is certified to UL 1995. Exterior is designed for outdoor application. The compressor features internal over temperature, pressure protection and total dipped hermetic motor. Other features include: Centrifugal oil pump and low vibration and noise. An unbeatable combination of value and reliability, Silver Series air conditioners feature Spine Fin coils and Duration single-stage compressors, providing powerful cooling with the reliability you expect from A.S..Standard Features: DURATION™ compressor Efficiency up to 17.0 SEER All aluminum SPINE FIN™ coil WEATHERGUARD™ fasteners EASY-SESS™ cabinet, service access and refrigerant connections with full coil protection DURABASE™ base, fast complete drain, weatherproof COMFORT-R™ mode approved Glossy corrosion resistant finish Internal compressor high/low pressure & temperature protection 018, 024 & 030 ship with start kit Liquid line filter/drier Spinnaker gray cabinet with high contrast badge and cap High pressure switch Service valve cover R-410A refrigerant S.E.E.T. design testing 100% line run test Low ambient cooling to 30°F with AY28X079 Low ambient cooling to 55°F as shippedCabinet Features: Unit casing is constructed of heavy gauge galvanized steel Painted with a weather-resistant powder paint finish on all louvered panels and the fan top panel The corner panels are prepainted All panels are subjected to our 1,000 hour salt spray test The base is made of a CMBP-G30 weatherproof material to resist corrosion Condenser Specifications American Standard Air Handler - TEM4A0C48S41SA-Painted metal cabinet with captured foil face insulation-2% or less air leakage-R-4.2 Insulating Value-Multi-Position UP/Down Flow, Horizontal Left /Right-ALL Aluminum Coil with Enhanced Patented Coil Fin-Electric Heaters with polarized plug connections (sold as accessory)-R-410A Thermal Expansion Valve-ECM Motor (3.5 – 5 Ton Models )-Low Voltage Pigtail Connections-Draw Through Design-Horizontal Drain pan-Single Color-Fused 24V Power-1 year warranty-10-year warranty registered-Optional extended warranty available • AIR HANDLER Specifications Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 3 + 7 Send Shop for American Standard and browse manuals and details of 4A7A6049H1000 TEM4A0C48S41SA AC Repair Seattle, WA HVAC Contractors Blue Springs, MO Duct Cleaning Santa Barbara, CA HVAC Contractors Middletown, OH Home AC Repair Chula Vista, CA Certified Electrician Oceanside, CA Top
