The A.S. 4A7A70 Gold 17 Air Conditioner is designed to keep you comfortable, thanks to generous two-step cooling. Plus, with ratings up to 18.00 SEER, this central air system provides incredible energy efficiency saving you on operating costs. Gold Series air conditioners feature proprietary Spine Fin coils and Duration two-stage compressors, and efficiency that keeps you energy smart and comfortable in even the hottest weather.
Standard Features:
DURATION™ 2-stage scroll compressor
Efficiency up to 18.0 SEER
All Aluminum SPINE FIN™ coil
DURATUFF™ weather proof and rust proof base
COMFORT ”R”™ mode approved for better comfort indoors
QUICK-SESS™ cabinet, service access and refrigerant connections with full coil protection
WEATHERGUARD™ fasteners
Glossy corrosion resistant finish tarpaulin gray cabinet with anthracite gray top
Internal compressor high/low pressure & temperature protection
Liquid line filter/drier
Low sound with advanced variable speed fan motor
Service valve cover
R-410A refrigerant
From 70 to 100% capacity modulation
100% run test in the factory
Low ambient cooling to 55° as shipped
Cabinet Features:
Unit casing is constructed of heavy gauge galvanized steel
Painted with a weather-resistant powder paint finish on all louvered panels and the fan top panel
The corner panels are prepainted
All panels are subjected to our 1,000 hour salt spray test
The base is made of a CMBP-G30 weatherproof material to resist corrosion

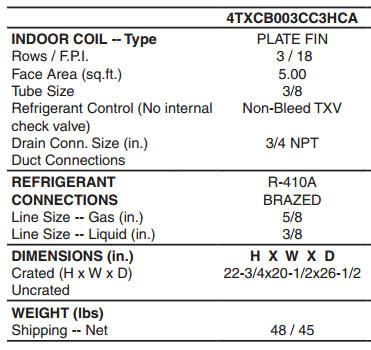

The A.S. Aluminum Cased and Uncased Coils Shall be designed for cooling and heat pump applications. The coil shall be 3/8 seamless aliminum tubing mecanically bonded to aluminum plate fin. Refrigerant for the TXC Coils shall be contorlled with factory installed non-bleed TXV refrigerant control. Refrigerant connections are brazed fittings with an additional Schrader Valve for system service. It works by first receiving refrigerant from the air conditioner or heat pump compressor. The Comfort Coil then allows the heat in the indoor air to be “exchanged” for cooler air. Meanwhile, the blower in your furnace circulates the cool air into your home, while the heat is released to the outdoors. Rust and corrosion are prevented and comfort, efficiency and dependability are improved.
Standard Features:
Aluminum tubes and tube sheets.
Aluminum fins
Foil insulation
Two-way, non-corrosive drain pan
Prepainted inner coil panels
Painted finish
The A.S. Freedom 80% AUD2 High Efficiency Gas Furnace empoys an adaptive Hot Surface Ignition system, which eliminates the waste of a constant burning pilot. The integrated system control lights the main burners upon a demand for heat from the room thermostat. Complete front service access. The A.S. Gold SV furnace has an efficiency rating of 80%, which is average amongst all furnaces. It has an upflow configuration, which means it is suitable to be installed in the basement / first floor. With 48,000 BTU/h of heating capacity and a blower motor that pushes air at the rate of , it is suitable to heat a typical 1,066 sq-ft. home in a moderate climate.
Standard Features:
Upflow/Horizontal and Alternate bottom/left/right return air
Power supply 115/1/60
2-stage gas valve
2-speed venter
Variable speed blower motor
Silicon Nitride hot surface igniter with adaptive heat up
Integrated solid state control
Attractive color accents
Heavy gauge aluminized steel heat exchanger
Multi-port In-shot burners
Complete front service access
Cabinet Features:
Slide out blower assembly
Hinged blower door
Perfect fit door catches
Insulated blower door
Gasketed blower door
Internal filter rack
Standard filter sizes
Two-tone color
Direct drive, variable speed motor
Integrated solid state control with self-diagnostics
Common vent capability Cleanable framed filters
Optional L.P. conversion kit
Left/right gas connection
Accessory hook-up capability
Selectable cooling fan off delay eliminates need for BAY24X045 time delay kit
Enhanced cooling control
American Standard Condenser - 4A7A4024L1000A
-DURATION™ 2-stage scroll compressor
-Efficiency up to 18.0 SEER
-All Aluminum SPINE FIN™ coil
-DURATUFF™ weather proof and rust proof base
-COMFORT ”R”™ mode approved for better comfort indoors
-QUICK-SESS™ cabinet, service access and refrigerant connections with full coil protection
-WEATHERGUARD™ fasteners
-Glossy corrosion resistant finish tarpaulin gray cabinet with anthracite gray top
-Internal compressor high/low pressure & temperature protection
-Liquid line filter/drier
-Low sound with advanced variable speed fan motor
-Service valve cover
-R-410A refrigerant
-From 70 to 100% capacity modulation
-100% run test in the factory
-Low ambient cooling to 55° as shipped
-Extended warranties available

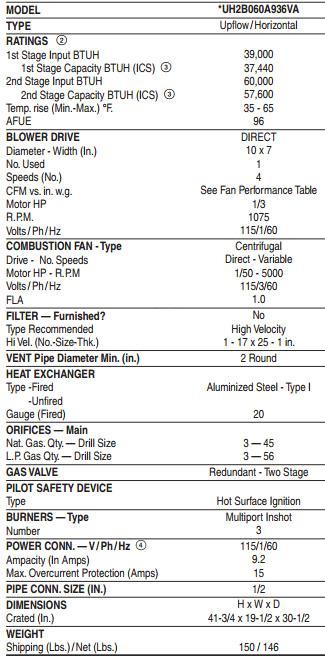

AMERICAN STANDARD FURNACE AUH2B060A9V3 SPECIFICATIONS:
