The 910 Series is a fully modulating, gas-fired, tankless water heaters. It can be installed either outdoors, indoors, or direct vented. Capable of supplying domestic hot water systems and/or combined domestic and heating applications (local codes dictate proper compliance). Multiple units can be combined in a system of water heaters to provide for larger applications such as hotels, large restaurants and apartment complexes..

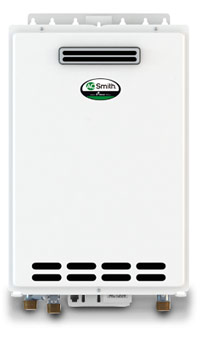

The ATIO-910-N tankless water heater uses up to 380,000 BTUs of natural gas to deliver a max flow rate of 10 GPM. It utilizes non-condensing technology to achieve 80% thermal efficiency. This model meets Low NOx emission requirements, and comes with a 15-year limited warranty.
The comprehensive line of A. O. Smith tankless water heaters provide hot water on-demand. When a hot water tap is opened, a flow sensor sends an activation signal to the onboard computer. The computer then activates the combustion system. Heat is transferred to the water as it flows through the heat exchanger and an outgoing water temperature sensor keeps water temperature to within +/- 1F of set point. Once the hot water tap is closed, the heater automatically turns off.
Product Specifications
| Tech Specs |
| Emissions: |
Low NOx |
| Maximum BTUs: |
380,000 |
| Minimum BTUs: |
15,000 |
| Thermal Efficiency: |
80% |
| Limited Heat Exchanger Warranty: |
10 Years |
| Limited Parts Warranty: |
5 Years |
| Water Connection Location: |
Bottom |
| Water Connection Size: |
3/4" |
| Heat Exchanger: |
HRS35 Copper Alloy |
| Secondary Heat Exchanger: |
Stainless Steel |
| Voltage: |
120 |
| Remote Control: |
Yes |
| Technology: |
Non-Condensing |
| Dimensions & Venting |
| Type: |
Space Saving |
| Height: |
24 7/8" |
| Width: |
25 1/4" |
| Depth: |
12 1/4" |
| Product Weight: |
112lbs/51kg |
| Shipping Weight: |
113lbs |
| Vent Type: |
Power Vent |
