SPECIFICATIONS:
| Type |
Wall Mounted |
| Unit |
Air Conditioner |
| Indoor Unit |
CS-S12NKUA |
| Outdoor Unit |
CU-S12NKUA |
| Performance & Electrical Ratings |
|
| Capacity Cooling (Btu/h) |
12,000 (4,100-13,300) |
| Capacity Heating (Btu/h) |
|
| Moisture Removal - High - Pints/H |
2.5 |
| Dry Air Flow - High -CFM |
425 |
| SEER - Cooling |
20 |
| EER - Cooling |
12 |
| HSPF - Heating |
|
| Power Supply V, Phase, Hz |
230/208V, 1PH, 60Hz |
| Running Amps - Cooling - A |
4.7/5.2(~6.8) |
| Running Amps - Heating - A |
|
| Power Input - Cooling - W |
1,000(250~1,150) |
| Power Input - Heating - W |
|
| Back-up Heater kW |
|
| Fuse or Circuit Breaker Capacity - A |
15 |
| Features |
|
| Controls |
Microprocessor |
| Low Ambient Control |
Equipped |
| Wireless Remote Controller |
Included |
| Wired Remote Controller (optional) |
CZ-RD516C |
| Fan Speeds |
5Speeds + Auto |
| Timer |
24hr Program |
| Air Deflection - Horizontal |
Manual |
| Air Deflection - Vertical |
Automatic |
| Air Filter |
Washable + Anti Microbial Filter |
| Refrigerant |
R-410A |
| Refrigerant Control |
Electric Expansion Valve |
| Operation Sound - In (Hi/Lo/Q-Lo) dB-A |
43 / 28 /20 |
| Operation Sound - Outdoor (Hi) dB-A |
48 |
| Refrigerant Piping -Type |
Flare |
| Refrigerant Piping - Discharge - inches |
1/4" |
| Refrigerant Piping - Suction - inches |
1/2" |
| Refrigerant Pipe Length - ft |
Max. 66 |
| Elevation Difference - Outdoor Above - ft |
Max. 49
* This is maximum elevation difference when the indoor unit is located above the outdoor unit. |
| Elevation Difference - Outdoor Below - ft |
Max. 49
* This is maximum elevation difference when the indoor unit is located above the outdoor unit. |
| Dimensions & Weight |
|
| Height (inches) |
Indoor Unit: 11-7/16"
Outdoor Unit: 21-9/32" |
| Width (inches) |
Indoor Unit: 34-9/32"
Outdoor Unit: 30-23/32" |
| Depth (inches) |
Indoor Unit: 8-1/16"
Outdoor Unit: 11-13/32" |
| Net Weight (lbs.) |
Indoor Unit: 20
Outdoor Unit: 82 |
DESCRIPTION:

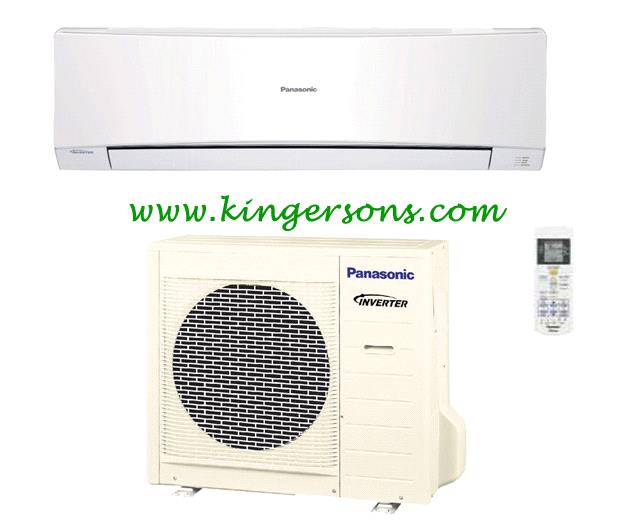

Panasonic’s Ductless Split Air Conditioner products offer wide versatility in solving your cooling for a single. The Indoor unit(evaporator) is mounted inside the room, enclosed in a handsome space saving cabinet. It is connected to the outdoor unit(condenser) via refrigerant lines & inter-unit wiring through a 3-1/2” opening in the wall. Since no ductwork is required, installation is simple, fast & efficient. The indoor unit has been uniquely designed to provide Whisper Quiet operation while delivering comfort throughout the room(s). Panasonic Ductless Split Systems bring together sleek styling in wall, duct or ceiling mounted systems, with whisper quiet operations, quality & reliability you can count on.
Microprocessor-Controlled Operation
Microprocessor control ensures that the temperature and humidity levels in the room are always comfortable.
Wireless Remote Control
Panasonic’s infrared Remote Control with and easy to read LCD Display, gives the user the capability to adjust & set: temperature, sweep (louver control), fan speeds, timer and more, for complete automatic operation.
Self-Diagnosing Function
Details of previous warnings are stored and can be verified on the liquid crystal display. This makes it easier to diagnose malfunctions, greatly reducing service labor.
(Wired remote controller)
Dry Mode
By coupling compressor and fan operation, intermittent operation can be precisely controlled according to room temperature, so that air is efficiently dehumidified.
3 Fan Speeds and Automatic Fan Operation
Convenient microprocessor control automatically adjusts fan speed to High, Medium or Low. According to room temperature to maintain a comfortable airflow throughout the room.
Air Sweep Control
The air sweep function moves the louver up and down in the air outlet, directing air in a “sweeping” motion around the room and providing comfort in every corner.
Louver Control
Louver can be manually set to the desired angle by remote control.
24-hour Clock with ON/OFF Program Timer
The remote control unit allows you to set a wide variety of timer-based operations. Such functions include automatic ON/OFF with a timer setting, same time ON/OFF every day, ON timer, OFF timer and Combination timer.
Automatic Restart Function after Power Failure
This feature allows the system to automatically resume operation at its preset program, after power is restored from a power failure.
Low Ambient Operation
Electric Refrigerant Control Valve
The circulation volume of the refrigerant is controlled by a pulse type electric control valve. In order to attain optimum efficiency, when the power is switched ON, the opening degree of the electric control valve is controlled between 90 and 480 steps.
R-410A
Quiet Mode
LOW, low fan speed for extra quiet operation.
Anti-microbial Filter
Anti-microbial Filter by 3M. This filter inhibits the growth of mold and mildew, and helps to create clean air.
Blue Fin Condenser
Condensers can take a beating from exposure to salty air, rain and other corrosive factors. Panasonic has tripled the life of our condensers with an original anti-rust coating.
