Performance:
Indoor Unit Model No: FAQ18TAVJU
Outdoor Unit Model No: RZQ18TAVJU
Cooling Capacity (Btu/hr): 18000
Sensible Capacity (Btu/hr): 13700
Cooling Input Power (kW): 1.607
Heating Capacity (Btu/hr): 20000
Heating Input Power (kW): 1.962
Heating COP (Btu/hr / Btu/hr): 3.04
Indoor Unit Type: Wall Mounted
Condensing Unit Type: SkyAir Heat Pump
Cooling Nominal Conditions:
Indoor: 80°F DB/67°F WB
Outdoor: 95°F DB/75°F WB Water Cooled:
Heating Nominal Conditions:
Indoor: 70°F DB/60°F WB
Outdoor: 47°F DB/43°F WB Water Cooled:
Rated Piping Length 25'
Rated Height Separation 0'
Power Supply (V/Hz/Ph:) 208-230/60/1ph
Power Supply Connections: L1, L2, Ground
Min. Circuit Amps MCA (A): 0.4
Max. Fusible Amps MFA (A): 15
Dimensions (HxWxD): 11-3/8 x 41-3/8 x 9
Airflow Rate (CFM wet coil) 500/400
Gas Pipe Connection (inch): 5/8
Liquid Pipe Connection (inch): 3/8
Condensate Connection (inch): 1
Sound Pressure Level (dBA): 43
Condensing Unit Details
Power Supply (V/Hz/Ph): 208-230/60/1ph
Power Supply Connections: L1, L2, Ground
Min. Circuit Amps MCA (A): 16.5
Max. Fusible Amps MFA (A): 20
Rated Load Amps RLA (A): 7.1
Dimensions (HxWxD): 30-5/16 x 35-7/16 x 12-5/8
Compressor Type: Inverter
Capacity Control Range (%): 30 - 100
Gas Pipe Connection (inch): 5/8
Liquid Pipe Connection (inch): 3/8
Sound Pressure Level (dBA): 49
Holding Refrigerant Charge (lbs): 5.1
Additional Charge (oz/ft): 0.036lbs/ft
Pre-charge Piping (Length ft): -
Max. Pipe Length (Total ft): 164 ft
Max. Pipe Length (Vertical ft): 98 ft
Cooling Operation Range (°F): 23 - 115
Cooling Range w/Baffle (°F): 0 - 115
Heating Operation Range (°F): 0 - 77
Heating Range w/Baffle (°F): 0 - 77
Warranty:
Parts: 5 Years
Compressor: 7 Years
Labor: None
Description:

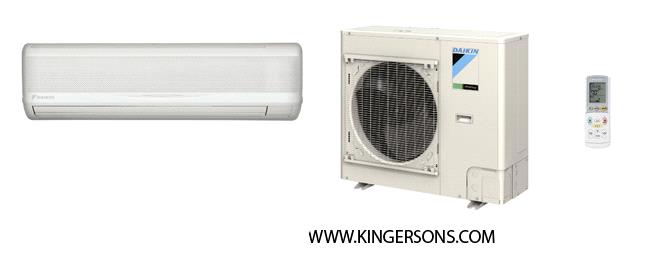

18000 BTU 1 1/2 Ton 18.6 SEER SkyAir Ductless Mini Split Air Conditioner -Heat Pump. Ranging from 18,000 Btu/h to 42,000 Btu/h, the innovative SkyAir system is designed to quietly blend into the ambiance of shops, restaurants, small offices or home environments. Daikin’s wall-mounted units are ideal for cooling or heating smaller zones such as stores, computer rooms and restaurants. The compact, stylish design lets the unit blend discreetly into any interior design, and airflow can be sent in any of five different directions and programmed via remote control.
Features
•Standard wireless controller (FTXS, optional with FAQ)
•Optional condensate pump
•Vertical Auto Swing (up and down)
•Program Dry Function
•Automatic Operation
•Hot Start
•Mold Proof Air Filter
•Remote Controller with backlit display
•Indoor Unit On/Off Timer
•24 Hour On/Off Timer
•Auto Restart after Power Failure
•Self Diagnosis with Digital Display
•Anti-corrosion Treatment of Outdoor Heat Exchanger Fin
