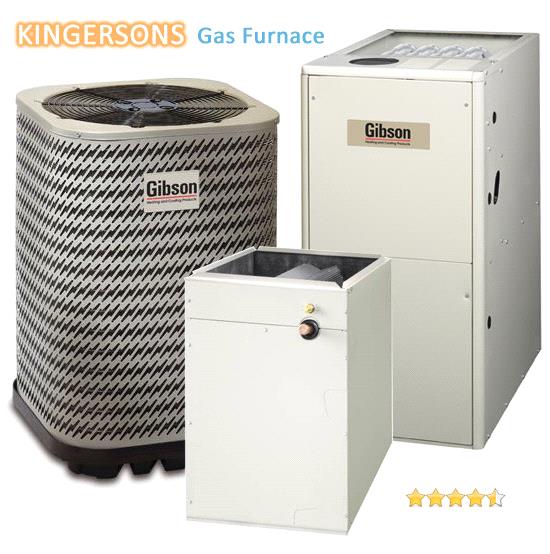

Processing. Please wait. Brand: Gibson Save Listing| Email Listing | Share Product Name: 4 Ton Gibson SEER 14 Gas Furnace With Cased Coil JS4BD048KB KG7SA090C35C Item#: JS4BD048KB KG7SA090C35C Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - JS4BD048KB KG7SA090C35C Description Gibson 4 Ton 14 SEER High Efficiency Gas Furnace With Cased Coil, R410A Specifications Name Gibson 921085J - JS4BD-048KB - 4 Ton 14 SEER High Efficiency Air Conditioner, R410A Brand Gibson Item Number JS4BD048KB Manufacturer Product Number 921085J SKU - PIM Number 1383140710926 Item Number 303395 UPC 663132253876 Unit of Measure EACH Weight 187.0 Pound (lb.) Length 32.0 Inches (in) Width 32.0 Inches (in) Height 30.0 Inches (in) Hazardous Material No EPA Cert Required No Country of Origin USA Equipment Type Straight Cool Tonnage 4 Stage Single SEER 14.0 Refrigerant R-410a Voltage 208-230 VAC Full Load Amps 23.2 Phase Single Cycle/Hertz 50 Cycle/Hertz 60 Minimum Circuit Amps 28.7 Condenser Motor HP 1/4 HP Suction Line Size 7/8" Liquid Line Size 3/8" Certifications AHRI, Nate Color Gray Warranty Offered 10 Years - All Parts Energy Star Rated No ETL Certified No LEED Certified No UL Listed No UL Recognized No Description Gibson 80% AFUE, 90K BTU, Single Stage, Upflow/Horizontal Gas Furnace Specifications Name Gibson 905008K - KG7SA 090C-35C1 - 80% AFUE, 90K BTU, Single Stage, Upflow/Horizontal Gas Furnace Brand Gibson Item Number KG7SA090C35C1 Manufacturer Product Number 905008K SKU - PIM Number 1383140696184 Item ID 212018 UPC 663132278237 Unit of Measure EACH Weight 127.0 Pound (lb.) Length 30.0 Inches (in) Width 23.0 Inches (in) Height 36.0 Inches (in) Hazardous Material No EPA Cert Required No Country of Origin USA Equipment Type Furnace Tonnage 3 - 5 AFUE 80.0% CFM 1440 Heating Capacity 72000 Air Flow Upflow / Horizontal BTU Input 90000 Voltage 115 VAC Full Load Amps 7.50 Phase Single Cycle/Hertz 50 Cycle/Hertz 60 Minimum Circuit Amps 15 Maximum Fuse Size 15 Blower Motor HP 1/2 HP Ignition Type Electronic Motor HP 1/2 HP Motor Type PSC Speed 4 Stages Heat 1 Certifications AHRI, Nate, CSA Color Brown Fuel Type Natural Gas, U.S. and Canadian Standard Furnace Gas Connection 1/2" [12.7 mm] N.P.T. Thermal Efficiency 80% Warranty Offered All Parts - 10 Years, 1 Year Quality Pledge to replace the unit if the heat exchanger fails within the first year of operation, to the original owner. Product registration required within a limited period of time after installation. Energy Star Rated No LEED Certified No UL Listed No UL Recognized No External Static Pressure 0.5 Description C6 Series indoor cased coils are designed for Upflow, Downflow, or horizontal applications when used in conjunction with a horizontal drain pan kit. Accessory kits are not required for factory ready horizontal coils. In high-moisture environments, formicary corrosion can be a problem. These coils, complete with Anteater technology, tackle this issue head on. The coil sits on top of your furnace to complete your cooling system. Capable of Combatting Corrosion: Homeowners in high-moisture areas may be familiar with problems involving formicary corrosion. This coil includes Anteater® technology for increased resistance against this type of corrosion. Efficient Performance: Make sure to properly match this coil with the right air conditioner or heat pump for an increase in efficiency. Robust Finish Resists Corrosion: When investing in a new HVAC system, you want to know that it is built to last. This unit uses galvanized steel with a polyester-urethane finish that resists corrosion 50% better than standard finishes for superior system protection. Thermal Expansion Valve: Factory-installed externally equalized thermal expansion valve (TXV) provides precise refrigerant control under varying load conditions. Specifications Name Nortek 920083A - C6BH-X48C-C - Cased Horizontal Multipoise Coil 4 Ton, R410A, With C Cabinet Brand Nortek Item Number C6BHX48CC Manufacturer Product Number 920083A SKU - PIM Number 1383140706522 Item ID 212457 UPC 663132251384 Unit of Measure EACH Weight 86.0 Pound (lb.) Length 25.0 Inches (in) Width 23.0 Inches (in) Height 32.0 Inches (in) Hazardous Material No EPA Cert Required No Country of Origin USA Equipment Type Straight Cool Tonnage 4 Stage Single Refrigerant R-410a Air Flow Horizontal Minimum Circuit Amps 10.0 Suction Line Size 7/8" Liquid Line Size 3/8" Cased Yes Energy Star Rated No LEED Certified No UL Listed Yes UL Recognized Yes Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 4 + 3 Send Shop for Gibson and browse manuals and details of JS4BD048KB KG7SA090C35C Air Conditioning Company Palatine, IL HVAC Contractors Buffalo, NY Air Conditioner Service Apple Valley, MN HVAC Contractors Galveston, TX Heating Repair Monroe, LA Certified Electrician Hillsboro, OR Top Watch This Item Your Phone Number: Your Email: Message here: Make an offer Quantity you would like to buy: 1 2 3 4 5 6 7 8 9 10 How much would you like to pay for each unit: Type your Message: Shipping Address: URL of the website where you saw cheaper price Or better deal: Your email address: Your phone number: E-mail a friend about this item Your friend email: Your Email: Message here: Email For Price Your Phone Number: Your Email: Shipping Zip Code: How soon do you need this product?: Immidiately Within a week Within couple of months Just looking for price Message here:
Brand: Gibson Save Listing| Email Listing | Share Product Name: 4 Ton Gibson SEER 14 Gas Furnace With Cased Coil JS4BD048KB KG7SA090C35C Item#: JS4BD048KB KG7SA090C35C Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required
Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - JS4BD048KB KG7SA090C35C Description Gibson 4 Ton 14 SEER High Efficiency Gas Furnace With Cased Coil, R410A Specifications Name Gibson 921085J - JS4BD-048KB - 4 Ton 14 SEER High Efficiency Air Conditioner, R410A Brand Gibson Item Number JS4BD048KB Manufacturer Product Number 921085J SKU - PIM Number 1383140710926 Item Number 303395 UPC 663132253876 Unit of Measure EACH Weight 187.0 Pound (lb.) Length 32.0 Inches (in) Width 32.0 Inches (in) Height 30.0 Inches (in) Hazardous Material No EPA Cert Required No Country of Origin USA Equipment Type Straight Cool Tonnage 4 Stage Single SEER 14.0 Refrigerant R-410a Voltage 208-230 VAC Full Load Amps 23.2 Phase Single Cycle/Hertz 50 Cycle/Hertz 60 Minimum Circuit Amps 28.7 Condenser Motor HP 1/4 HP Suction Line Size 7/8" Liquid Line Size 3/8" Certifications AHRI, Nate Color Gray Warranty Offered 10 Years - All Parts Energy Star Rated No ETL Certified No LEED Certified No UL Listed No UL Recognized No Description Gibson 80% AFUE, 90K BTU, Single Stage, Upflow/Horizontal Gas Furnace Specifications Name Gibson 905008K - KG7SA 090C-35C1 - 80% AFUE, 90K BTU, Single Stage, Upflow/Horizontal Gas Furnace Brand Gibson Item Number KG7SA090C35C1 Manufacturer Product Number 905008K SKU - PIM Number 1383140696184 Item ID 212018 UPC 663132278237 Unit of Measure EACH Weight 127.0 Pound (lb.) Length 30.0 Inches (in) Width 23.0 Inches (in) Height 36.0 Inches (in) Hazardous Material No EPA Cert Required No Country of Origin USA Equipment Type Furnace Tonnage 3 - 5 AFUE 80.0% CFM 1440 Heating Capacity 72000 Air Flow Upflow / Horizontal BTU Input 90000 Voltage 115 VAC Full Load Amps 7.50 Phase Single Cycle/Hertz 50 Cycle/Hertz 60 Minimum Circuit Amps 15 Maximum Fuse Size 15 Blower Motor HP 1/2 HP Ignition Type Electronic Motor HP 1/2 HP Motor Type PSC Speed 4 Stages Heat 1 Certifications AHRI, Nate, CSA Color Brown Fuel Type Natural Gas, U.S. and Canadian Standard Furnace Gas Connection 1/2" [12.7 mm] N.P.T. Thermal Efficiency 80% Warranty Offered All Parts - 10 Years, 1 Year Quality Pledge to replace the unit if the heat exchanger fails within the first year of operation, to the original owner. Product registration required within a limited period of time after installation. Energy Star Rated No LEED Certified No UL Listed No UL Recognized No External Static Pressure 0.5 Description C6 Series indoor cased coils are designed for Upflow, Downflow, or horizontal applications when used in conjunction with a horizontal drain pan kit. Accessory kits are not required for factory ready horizontal coils. In high-moisture environments, formicary corrosion can be a problem. These coils, complete with Anteater technology, tackle this issue head on. The coil sits on top of your furnace to complete your cooling system. Capable of Combatting Corrosion: Homeowners in high-moisture areas may be familiar with problems involving formicary corrosion. This coil includes Anteater® technology for increased resistance against this type of corrosion. Efficient Performance: Make sure to properly match this coil with the right air conditioner or heat pump for an increase in efficiency. Robust Finish Resists Corrosion: When investing in a new HVAC system, you want to know that it is built to last. This unit uses galvanized steel with a polyester-urethane finish that resists corrosion 50% better than standard finishes for superior system protection. Thermal Expansion Valve: Factory-installed externally equalized thermal expansion valve (TXV) provides precise refrigerant control under varying load conditions. Specifications Name Nortek 920083A - C6BH-X48C-C - Cased Horizontal Multipoise Coil 4 Ton, R410A, With C Cabinet Brand Nortek Item Number C6BHX48CC Manufacturer Product Number 920083A SKU - PIM Number 1383140706522 Item ID 212457 UPC 663132251384 Unit of Measure EACH Weight 86.0 Pound (lb.) Length 25.0 Inches (in) Width 23.0 Inches (in) Height 32.0 Inches (in) Hazardous Material No EPA Cert Required No Country of Origin USA Equipment Type Straight Cool Tonnage 4 Stage Single Refrigerant R-410a Air Flow Horizontal Minimum Circuit Amps 10.0 Suction Line Size 7/8" Liquid Line Size 3/8" Cased Yes Energy Star Rated No LEED Certified No UL Listed Yes UL Recognized Yes Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 4 + 3 Send Shop for Gibson and browse manuals and details of JS4BD048KB KG7SA090C35C Air Conditioning Company Palatine, IL HVAC Contractors Buffalo, NY Air Conditioner Service Apple Valley, MN HVAC Contractors Galveston, TX Heating Repair Monroe, LA Certified Electrician Hillsboro, OR Top

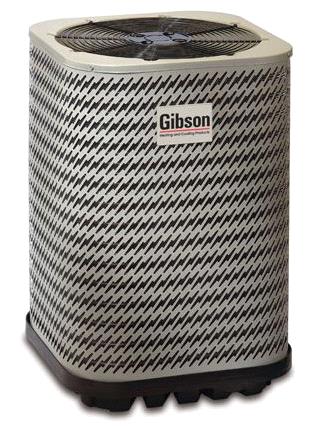

Name Gibson 921085J - JS4BD-048KB - 4 Ton 14 SEER High Efficiency Air Conditioner, R410A Brand Gibson Item Number JS4BD048KB Manufacturer Product Number 921085J SKU - PIM Number 1383140710926 Item Number 303395 UPC 663132253876 Unit of Measure EACH Weight 187.0 Pound (lb.) Length 32.0 Inches (in) Width 32.0 Inches (in) Height 30.0 Inches (in) Hazardous Material No EPA Cert Required No Country of Origin USA Equipment Type Straight Cool Tonnage 4 Stage Single SEER 14.0 Refrigerant R-410a Voltage 208-230 VAC Full Load Amps 23.2 Phase Single Cycle/Hertz 50 Cycle/Hertz 60 Minimum Circuit Amps 28.7 Condenser Motor HP 1/4 HP Suction Line Size 7/8" Liquid Line Size 3/8" Certifications AHRI, Nate Color Gray Warranty Offered 10 Years - All Parts Energy Star Rated No ETL Certified No LEED Certified No UL Listed No UL Recognized No

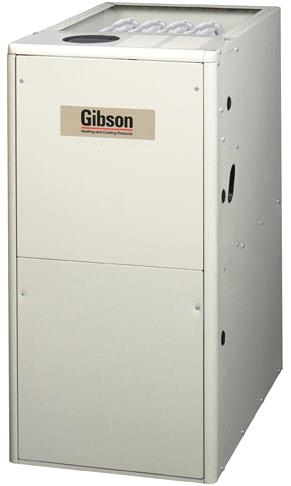

Name Gibson 905008K - KG7SA 090C-35C1 - 80% AFUE, 90K BTU, Single Stage, Upflow/Horizontal Gas Furnace Brand Gibson Item Number KG7SA090C35C1 Manufacturer Product Number 905008K SKU - PIM Number 1383140696184 Item ID 212018 UPC 663132278237 Unit of Measure EACH Weight 127.0 Pound (lb.) Length 30.0 Inches (in) Width 23.0 Inches (in) Height 36.0 Inches (in) Hazardous Material No EPA Cert Required No Country of Origin USA Equipment Type Furnace Tonnage 3 - 5 AFUE 80.0% CFM 1440 Heating Capacity 72000 Air Flow Upflow / Horizontal BTU Input 90000 Voltage 115 VAC Full Load Amps 7.50 Phase Single Cycle/Hertz 50 Cycle/Hertz 60 Minimum Circuit Amps 15 Maximum Fuse Size 15 Blower Motor HP 1/2 HP Ignition Type Electronic Motor HP 1/2 HP Motor Type PSC Speed 4 Stages Heat 1 Certifications AHRI, Nate, CSA Color Brown Fuel Type Natural Gas, U.S. and Canadian Standard Furnace Gas Connection 1/2" [12.7 mm] N.P.T. Thermal Efficiency 80% Warranty Offered All Parts - 10 Years, 1 Year Quality Pledge to replace the unit if the heat exchanger fails within the first year of operation, to the original owner. Product registration required within a limited period of time after installation. Energy Star Rated No LEED Certified No UL Listed No UL Recognized No External Static Pressure 0.5

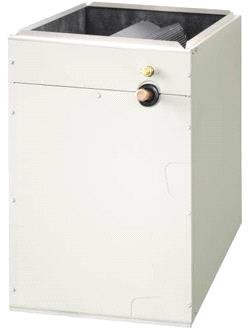

C6 Series indoor cased coils are designed for Upflow, Downflow, or horizontal applications when used in conjunction with a horizontal drain pan kit. Accessory kits are not required for factory ready horizontal coils. In high-moisture environments, formicary corrosion can be a problem. These coils, complete with Anteater technology, tackle this issue head on. The coil sits on top of your furnace to complete your cooling system. Capable of Combatting Corrosion: Homeowners in high-moisture areas may be familiar with problems involving formicary corrosion. This coil includes Anteater® technology for increased resistance against this type of corrosion. Efficient Performance: Make sure to properly match this coil with the right air conditioner or heat pump for an increase in efficiency. Robust Finish Resists Corrosion: When investing in a new HVAC system, you want to know that it is built to last. This unit uses galvanized steel with a polyester-urethane finish that resists corrosion 50% better than standard finishes for superior system protection. Thermal Expansion Valve: Factory-installed externally equalized thermal expansion valve (TXV) provides precise refrigerant control under varying load conditions. Specifications Name Nortek 920083A - C6BH-X48C-C - Cased Horizontal Multipoise Coil 4 Ton, R410A, With C Cabinet Brand Nortek Item Number C6BHX48CC Manufacturer Product Number 920083A SKU - PIM Number 1383140706522 Item ID 212457 UPC 663132251384 Unit of Measure EACH Weight 86.0 Pound (lb.) Length 25.0 Inches (in) Width 23.0 Inches (in) Height 32.0 Inches (in) Hazardous Material No EPA Cert Required No Country of Origin USA Equipment Type Straight Cool Tonnage 4 Stage Single Refrigerant R-410a Air Flow Horizontal Minimum Circuit Amps 10.0 Suction Line Size 7/8" Liquid Line Size 3/8" Cased Yes Energy Star Rated No LEED Certified No UL Listed Yes UL Recognized Yes
Name Nortek 920083A - C6BH-X48C-C - Cased Horizontal Multipoise Coil 4 Ton, R410A, With C Cabinet Brand Nortek Item Number C6BHX48CC Manufacturer Product Number 920083A SKU - PIM Number 1383140706522 Item ID 212457 UPC 663132251384 Unit of Measure EACH Weight 86.0 Pound (lb.) Length 25.0 Inches (in) Width 23.0 Inches (in) Height 32.0 Inches (in) Hazardous Material No EPA Cert Required No Country of Origin USA Equipment Type Straight Cool Tonnage 4 Stage Single Refrigerant R-410a Air Flow Horizontal Minimum Circuit Amps 10.0 Suction Line Size 7/8" Liquid Line Size 3/8" Cased Yes Energy Star Rated No LEED Certified No UL Listed Yes UL Recognized Yes
