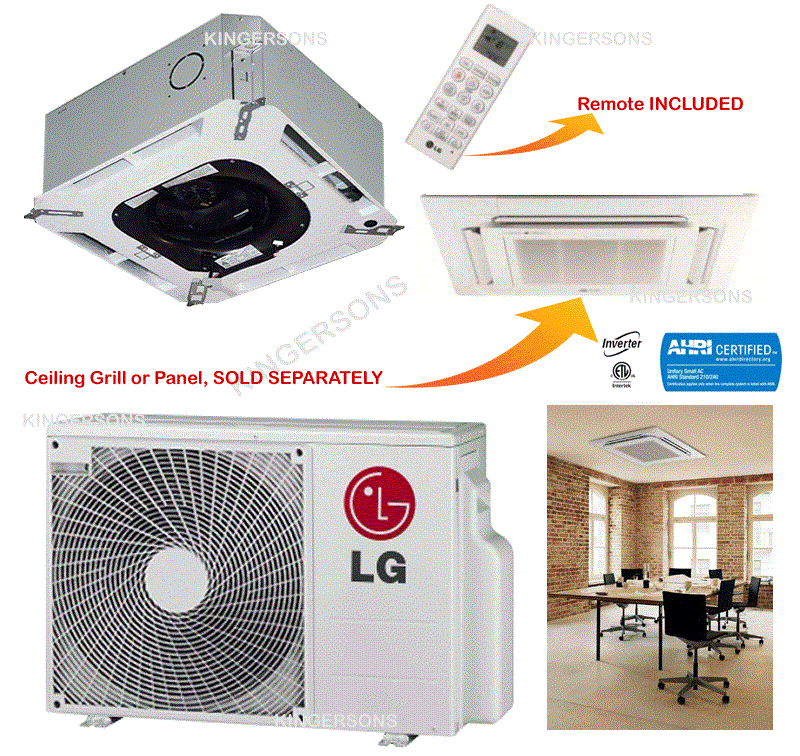

LCN098HV4
LG Electronics' products have led the global air conditioner market with excellent performance and innovative design. The Ceiling Cassette LG models are ideal for light commercial applications and work well in large, open spaces. These are high performance air conditioners with a high SEER inverter and excellent design.
- Ceiling grill required for installation - Sold Separately. Model# PT-UQC CLICK here
- Two Thermistor control
- 24-Hour on/off timer
- Auto operation
- Auto Restart
- Chaos swing
- Control lock function
- Drain Pump
- Group control
- Inverter (variable speed fan)
- Jet Cool
| LCN098HV4: |
| Grille (Sold Separately) | PT-QCHW0/PT-UQC |
| Nominal Cooling Capacity (Btu/h)¹ | 9,000 |
| Nominal Heating Capacity (Btu/h)¹ | 10,400 |
| Operating Range: |
| Cooling (°F WB) | 57-77 |
| Heating (°F DB) | 59-81 |
| Fan: |
| Type | Turbo |
| Motor Output (W) x Qty. | 43 x 1 |
| Motor/Drive | Brushless Digitally Controlled / Direct |
| Airflow Rate CFM (H/M/L) | 300 / 265 / 230 |
| Unit Data: |
| Refrigerant Type² | R410A |
| Refrigerant Control | EEV |
| Power Supply V, Ø, Hz³ | 208-230, 1, 60 |
| Rated Amps (A) | 0.25 |
| Sound Pressure Level dB(A) (H/M/L)&sup4; | 36 / 33 / 30 |
| Body Dimensions (W x H x D, in.) | 22-7/16 x 8-7/16 x 22-7/16 |
| Grille (Sold Separately) Dinmensions (WxHxD, in.) | 27-9/16 x 7/8 x 27-9/16 |
| Body Net Wieght (lbs.) | 29 |
| Gille (Sold Separately) Net Weight (lbs.) | 7 |
| Body Shipping Weight (lbs.) | 34 |
| Grille (Sold separately) Shipping Weight (lbs.) | 9 |
| Power Wiring/Communications Cable(No. x AWG)&sup5; | 4 x 18 |
| Heat Exchanger (Row x Column x Fin / inch) x Number | (2 x 8 x 18) x 1 |
| Pipe Size: |
| Liquid (in.) | 1/4 |
| Vapor (in.) | 3/8 |
| Connection Size: |
| Liquid (in.) | 1/4 |
| Vapor (in.) | 3/8 |
| Drain O.D. / I.D. (in.) | 1-1/4, 1 |
===================================
LG LUU097HV
LG Electronics products have led the global air conditioner market with excellent performance and innovative design. These LG models are ideal for light commercial applications and work well in large, open spaces. These are high performance air conditioners with a high SEER inverter and excellent design.
- ESP control
- Hot start
- Inverter (variable speed fan)
- Internal Condensate Pump
- Auto Restart
- Control lock
- Group control
- Timer ( on / off )
- Sleep Mode
| Brand: | LG |
| Configuration: | Wall Mounted |
| Connection Method: | Flared |
| Cooling BTU: | 9,000 |
| Drain Pipe Size: | 5/8" |
| Efficiency: | 18.5 SEER |
Electrical:
KINGERSONS | 208 / 230 V. 1 Phase 60 Hz |
| Energy Source: | Electric |
| Energy Star: | No |
| Heating BTU: | 14,000 |
| Inverter: | Yes |
| Liquid Line: | 1/4" |
| Low Ambient Operation: | Yes |
| Model: | LUU097HV |
| Nominal Capacity: | 0.75 Ton |
| Product Depth: | 10" |
| Product Height: | 21 15/32" |
| Product Length: | 30 5/16" |
| Product Ship Weight: | 89 lbs. |
| Refrigerant: | R410A |
| Suction Line: | 3/8" |
| Unit Type: | Outdoor |
UPC: KINGERSONS
| LUU097HV |
| Warranty Terms - Compressor: | 7 Years |
Warranty Terms - Parts:
| 5 Years |
