*****Ceilling Grill PT-QCHW0 SOLD Separate************

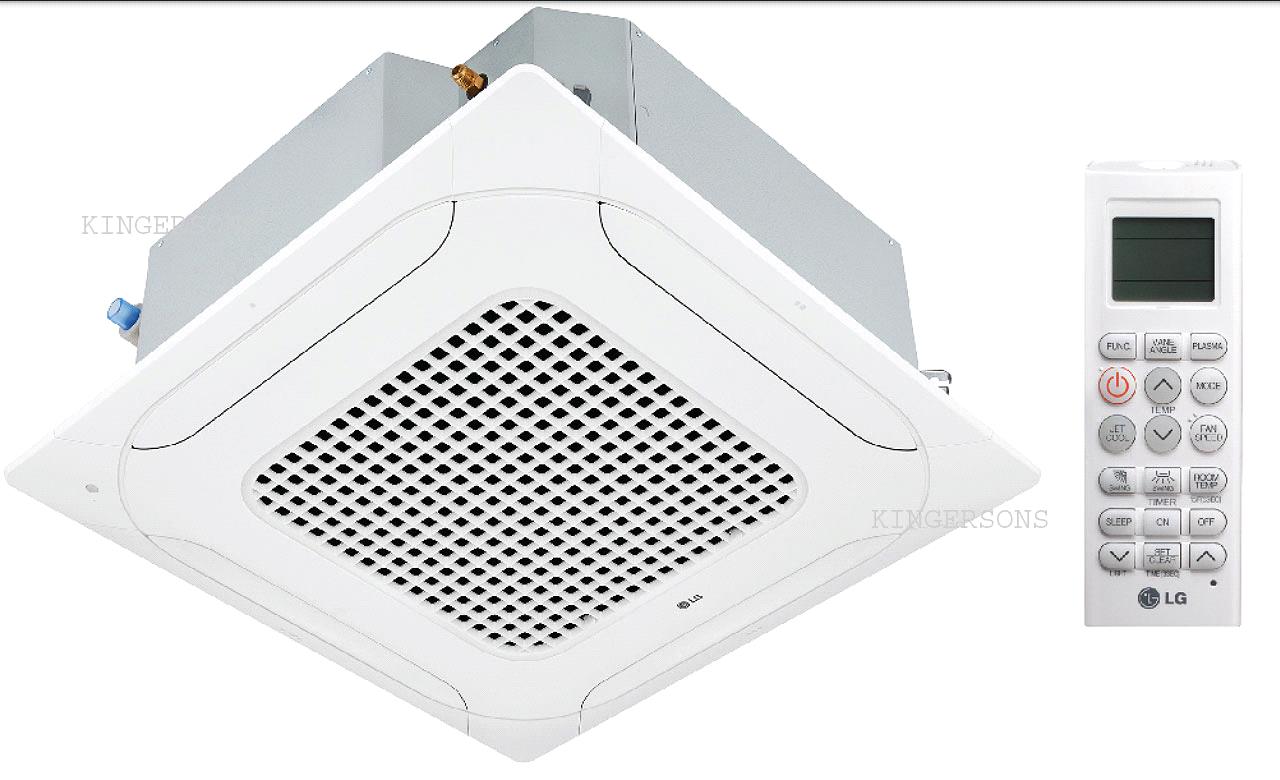

Overview for LG LCN128HV4
LG Electronics' products have led the global air conditioner market with excellent performance and innovative design. The Ceiling Cassette LG models are ideal for light commercial applications and work well in large, open spaces. These are high performance air conditioners with a high SEER inverter and excellent design.
This is an indoor unit only, and requires an outdoor unit to function. Outdoor unit must be purchased separately.
- Ceiling grill required for installation - Sold Separately.
- Two Thermistor control
- 24-Hour on/off timer
- Auto operation
- Auto Restart
- Chaos swing
- Control lock function
- Drain Pump
- Group control
- Inverter (variable speed fan)
- Jet Cool
- Our SKU number(s): LG LCN128HV4
- The manufacturer model number(s): LG LCN128HV4
Brand: LG
Series: Multi F Series
Model: LCN128HV4
Width: 22 7/16 Inch
Depth: 22 7/16 Inch
Height: 8 7/16 Inch
Net Weight: 29 Lbs.
Shipping Weight: 34 Lbs.
BTU Class: 12,000 BTU
Heating Capacity: 13,800 BTU
AC System Type: Mini Split
Component Type: Indoor Unit
Operation: Cooling with Heat Pump
Placement Type: Ceiling Cassette
Wireless Remote Control(s) Included: Included
Wired Remote Control(s) Included: Optional
Thermostat Range - Cooling (F°): 57-77
Thermostat Range - Heating (F°): 59-81
Power Source V / Hz / Ø: (208/230/60/1)
Rated Amps: 0.25 Amps
Fan: Turbo
No. of Fans: 1
Motor: Brushless Digitally Controlled
Motor Drive: Direct
Energy Star Certified: No
Moisture Removal (Pts/hr): 2.47 Pts./Hr.
Airflow Rate Low (CFM): 247 CFM
Airflow Rate Medium (CFM): 283 CFM
Airflow Rate High (CFM): 335 CFM
Operating Sound Level - Low (dB): 32 dB
Operating Sound Level - Medium (dB): 35 dB
Operating Sound Level - High (dB): 38 dB
Temperature Sensor: Thermistor
Entering Mixed Air - Cooling: 57° - 77°F DB
Entering Mixed Air - Heating: 59° - 81°F DB
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 18
Liquid Line Outer Diameter: 1/4 Inch
Suction Line Outer Diameter: 3/8 Inch
Drain Line Outer Diameter: 1 1/4 Inch
Drain Line Inner Diameter: 1 Inch
Refrigerant Type: R-410A
Refrigerant Control: EEV
Piping Length (No Additional Refrigerant): 25 Ft.
Max. Line Length - Total: 66 Ft.
Control Lock Function (Concealed Duct Only): Yes
Human Detection Technology: No
Room-Freeze Protection: No
Filter Clean Notification: No
Hot Start Heating System (Heat Pumps Only): Yes
Program Timer: Yes
Manual Power Switch: Yes
Defrost/Deicing: Yes
Air Filter: Yes
Filters Washable?: Yes
Filters Anti-microbial?: No
Restart Delay: No
Sleep Mode: Yes
Self-diagnosis: No
Condensate Sensor Connection: Yes
Soft Start: No
Quiet/Sleep Mode: Yes
Self-Cleaning Indoor Coil: No
Built-in Drain Pump (Indoor Unit): Yes
Hidden Display: No
Surge Cool/Heat: Yes
Auto Operation: Yes
Auto Restart on Power Failure: Yes
Auto-changeover: Yes
Automatic Louver Adjustment: No
4-Way Swing: Yes
Dehumidifying Mode: Yes
No. of Fan Speeds: 4
