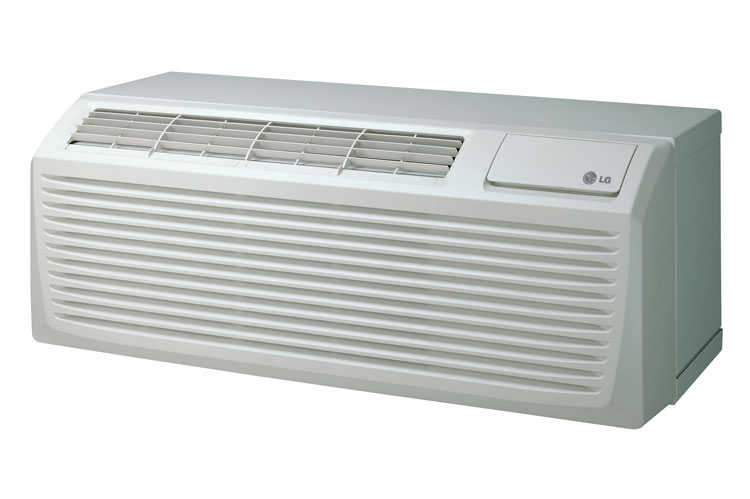

LG LP126HD3B - PTAC Heat Pump Air Conditioner 12,200 BTU Cooling / 3.5 KW Heat 265V
Quick Product Overview
We are proud to offer LG's line of innovative comfort solutions. When guests are provided with a truly quiet, comfortable room, lodging facilities are rewarded with repeat visits. The best way to assure that is with LG’s new line of PTAC products. They provide an extremely low decibel level and an outstanding sound prevention rating. Plus, LG models have efficiency rating up to 11.9 EER, which translates into energy savings.
Ultra-quiet operation is the hallmark of LG's new line of PTAC products. Low decibel levels and an outstanding sound-prevention rating make this your best choice for a quiet environment, And with efficiency ratings up to 11.9 EER, these units are also your energy efficient choice.
Standard Features in All LG PTAC Models
Uses Earth-Friendly R410A Refrigerant Incredibly Quiet Energy Saver Mode Digital Control Display Includes These Features  Temperature display on unit; precise and easy-to-use; ADA compliant Cooling, heating and fan modes; one unit for all seasons Energy saver mode; helps to lower energy consumption operational costs and saves money Auto restart; automatically restarts to programmed setting when the electricity comes on after a power failure Auto Restart Gold Fin Anti-CorrosionProtects the unit from the corrosive effects of outside air and extends the operating life of PTAC models; LG’s patented process is standard on LG PTAC models Freeze Protection LG Technical Support
PTAC Specifications Overview
Control Type: Digital Refrigerant: R410A Capacity (BTUs) Cooling: 12,200 Capacity (BTUs) Heating: 11,000 Heat Pump Model: Yes EER: 11.9 Rated Voltage: 265-60-1 Electric Heater (kW): 3.5 Circuit Breaker (A): TBA Unit Dimension (inches, WxHxD): 42 x 16 x 19-7/8
Required For New Construction InstallationThe following items are required, but not included, for new construction installs of LG PTACs
Wall Sleeve: AYSVB01A Outdoor Grille (Your Choice): AYRGALA01 - Stamped Aluminum Grille AYAGALA01A - Architectural Aluminum Louvered Grille AYAGALB01A - Architectural Dark Bronze Louvered Grille AYAGALC01A - Architectural Soft Dove Louvered Grille In areas of high humidity a non-powered # AYDR101 condensate drain kit is recommended
LG PTAC Accessories We provide all the accessories to the LG PTAC line, including condensate kits, hardwire kits, lateral duct kits, leveling legs, sub bases, thermostat adapters and more.
View Our Complete List of PTAC Accessories
LG PTAC Thermostat Control Options
PYRCUCA0A Wired Wall Thermostat - Digital, Non-Programmable PYRCUCC0A Standard Wireless Digital Thermostat and Occupancy Sensor Kit PYRCUCC2A Environmental Control Manager (ECM) together with the required PYNTU0A Networking Kit
Special Pricing and Shipping Options
Call us about special pricing and no charge shipping on your job, we can help you get the bid and meet your deadlines!
Available Product Literature
LG HVAC Full Line Engineering & Spec Guide LG PTAC Owner's Manual LG PTAC Sales Sheet Brochure LG PTAC Tech Sheet LG R410A PTAC Submittal Data SheetRequires the free Adobe Reader to view.
LG Video: Features and Benefits of the LG PTAC System Please visit the ComfortGurus YouTube page for more LG PTAC installation videos, PTAC sound tests, and more.
