LG's NEW Multi-F Systems now include LGRED° Heat Technology featuring low temperature heating down to -13°F!
LG's new line of energy efficient multi-zone systems is here. The entire line features LGRED° Heat Technology, making each unit a perfect solution for cold weather climates. The LG LMU300HHV can be operated in the heating mode when temperatures get down as low as -13°F and it will perform at 100% heating capacity! The system will also provide low ambient cooling to 14°F. Add a Low Ambient Kit (sold separately) for cooling operation down to -4°F.
The LG LMU300HHV is a 30,000 BTU, configurable, multi-zone mini split air conditioning and heating system. Flexibility is part of the name with LG's Flex Multi-F Quad Zone Multi-Split air conditioner. The LMU300HHV gives you the flexibility of choosing two, three or four indoor units. Mix and match units to fit your room size and decor. This four-port system offers a combined BTU connectivity rating of up to 40,000 BTUs. With a focus on energy efficiency, this mini split system offers a high SEER rating and is Energy Star Qualified when used with non-ducted indoor units such as wall units and ceiling cassettes.
The improved heating range on this system allows for operation in the heat mode when outdoor temperatures are as low as -13°F. With heating possible when it is that cold, this unit is a feasible option as a primary heat source for much of the country. And, if you need to keep an area cool even when it is cold outside, this system will operate in the cooling mode with temperatures as low as 14°F.
Each unit comes with its own remote or thermostat giving you the utmost in comfort flexibility. Each space can be adjusted individually or completely off. Another advantage of adding a mini-split system like the LMU300HHV is the ease of installation. No ductwork is needed and, while each indoor unit requires a line set and wire (sold separately), only a small 3” hole is required to connect each indoor unit to the outdoor unit.
In addition to being an energy efficient way to heat and cool your home, the LMU300HHV outdoor unit offers many other standard features including a variable speed inverter compressor, defrost/deicing capabilities, three minute restart delay, and a self diagnosis system. The LG Multi-F compressor uses a soft start in an effort to reduce power surges on the electrical system. The outdoor unit will operate in the cooling mode when the outside temperature is as low as 14°F. In the heating mode perform with temperatures ranging from -13°F to 75°F. To top it all off, it uses environmentally friendly R-410A refrigerant and is pre-charged for up to 98 feet of line.
- Net Weight (lbs.)
- 152
- Number of Zones
- 2
- 3
- 4
- Maximum Number of Indoor Units
- 4
- EER
- 12.5
- SEER (non-ducted indoor units)
- 20
- SEER (ducted indoor units)
- 17.5
- SEER (ducted & non ducted)
- 17.5
- Energy Star
- Yes
- Cooling Amps
- 16.7
- Cooling BTUs
- 30000
- Includes Heat Pump
- Yes
- Heat Pump BTUs
- 28600
- Heat Pump Heating Amps
- 15.9
- HSPF (non-ducted)
- 11
- Outdoor Unit Noise Level (dBA)
- 55
- Voltage
- 208-230V
- Circuit Breaker Size (Amps)
- 25
- Operating Range - Cooling
- -4° F ~ 118° F
- Operating Range - Heating
- -13° F ~ 75° F
- Min. Outdoor Temp for Heat °F
- -13
- Inverter Technology
- Yes
- Pipe Length (No Addl Refr Req)
- 98.4
- Max. Pipe Length/Zone (ft.)
- 82
- Outdoor Unit Width (in.)
- 37.406 "
- Outdoor Unit Depth (in.)
- 13 "
- Outdoor Unit Height (in.)
- 32.844 "
- Outdoor Unit Weight (lbs.)
- 152
- Certifications
- AHRI Certified
- Parts Warranty
- 10 Years
- Compressor Warranty
- 10 Years
- Labor Warranty
- None

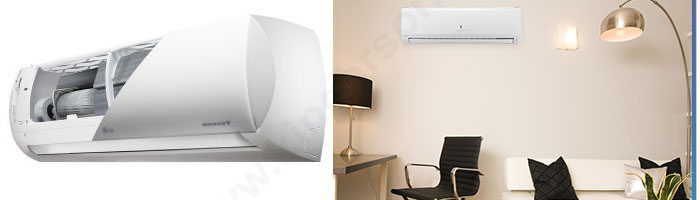

The 14300 BTU standard wall indoor unit comes with a wireless LCD remote, batteries, holder and holder hardware as well as all installation hardware needed.
The Standard Wall Unit is also available in several different sizes: 7,000 BTUs (LMN078HVT), 9,000 BTUs (LSN090HSV4), 12,000 BTUs (LSN120HSV4), 18,000 BTUs (LSN180HSV4), and 24,000 BTUs (LMN248HVT).
Features of the Standard Wall unit include:
- LG Smart AC WiFi compatible
- Inverter Technology: inverter heat pump air conditioners use a variable speed compressor, rather than the constant speed found in conventional ACs. Instead of shutting off once the temperature is achieved, the inverter compressor continues to operate at a low speed to maintain the temperature. It is quieter to operate and uses less energy than conventional air conditioners.

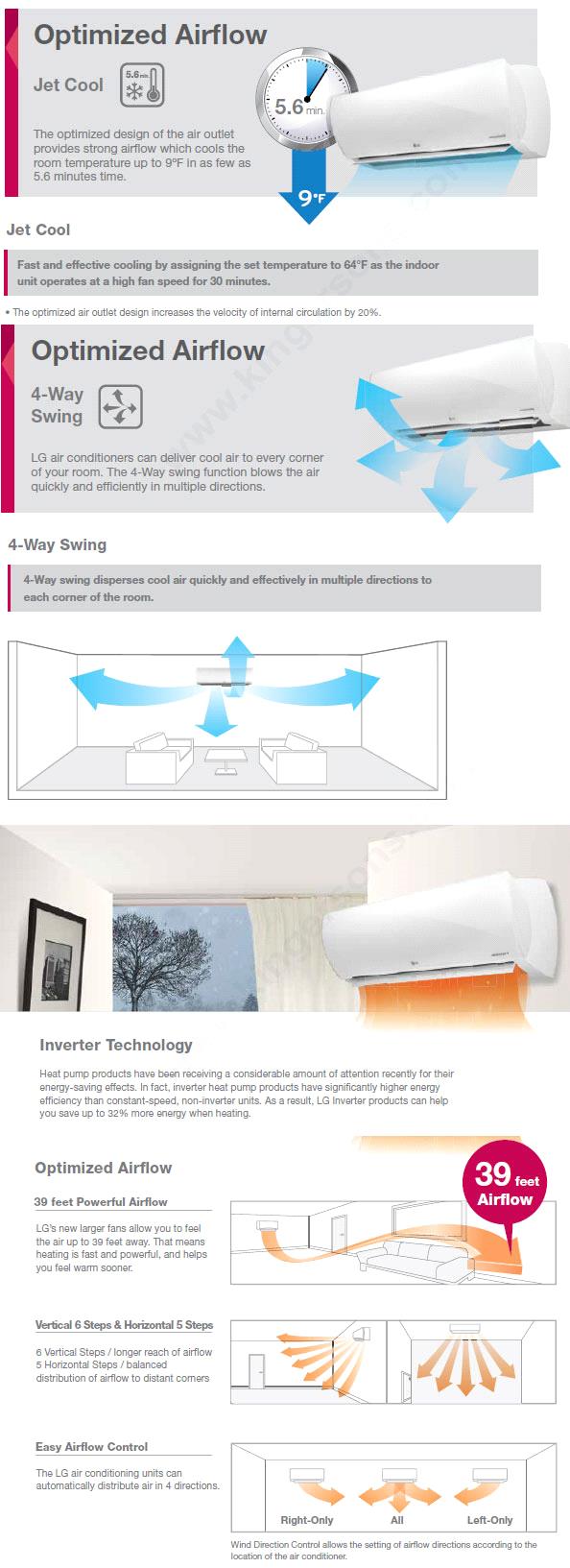

- Chaos Swing: Electronically controlled louvers and fan speeds create a more natural, random air flow thereby reducing temperature stratification.
- Jet Cool/Jet Heat: Operates at high speed for up to 30 minutes to quickly cool a room down to 64°F
- Self-Cleaning Indoor Coil: Drives dirt and moisture from coil surface leaving it clean and fresh smelling.
- Auto Operation (Artificial Intelligence): Provides three levels of comfort from which to choose. Temperature and fan speed will set automatically.
- Auto Restart Operation: Automatically restarts a unit to programmed setting when the electricity comes on after a power failure.
- 24 Hour On/Off Timer
The Multi F Max System must be installed by a qualified, licensed HVAC technician. Manufacturer covers parts only under warranty. Installer is responsible for labor warranty.
