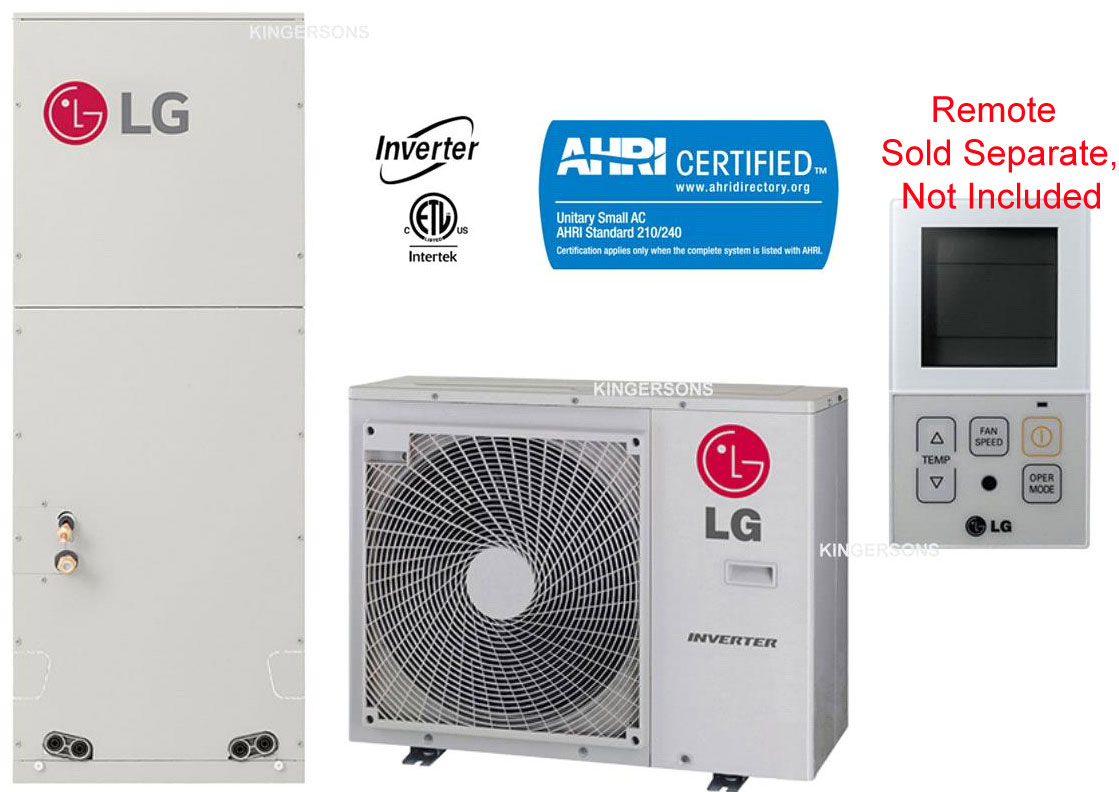

The LV361HV single zone mini-split is the perfect solution for adding zone heating and cooling to your home or office. It is a ducted system that will work in conjunction with your existing heating and cooling duct work. One of the main advantages to installing a multi-position air handler system is the opportunity to now zone an entire separate area without interupting the general flow of your home. With 36,000 BTUs cooling and 40,000 BTUs heating capacities, the LG LVN361HV4 Multi-Position Air Handler, when connected to the corresponding LUU369HV Outdoor Compressor, has a SEER rating of 18 and an HSPF rating of 10. This system is Energy Star Qualified with an EER of 11.
If the benefits of having separate zones is appealing to you but the look of a traditional indoor unit of a mini-split is not, look no further. LG now gives you the opportunity to benefit from inverter technology, zone comfort control and flexibility of installation. The new ducted, vertical air handler unit (VAHU) is really a multi-position air handler. It offers vertical upflow and downflow (conversion kit required, sold separately) as well as horizontal left and right configurations.
Whether you find yourself having to replace your existing central system, you are in need of a new cooling and heating system, or you are looking to separate your home or office into specific zones, LG gives you options! The LG Multi-Position Air Handler can be used in addition to or as a replacement for your existing central system, giving you more zoning options. Also, the vertical air handler offers you the option of adding electric back-up heat. This indoor unit can be installed in a basement or attic - depending on your ducting and installation needs.
In addition to the 4-way installation possibilities, the LG Multi-Position Vertical Air Handler features of the vertical air handler include:
- Inverter Technology: inverter heat pump air conditioners use a variable speed compressor, rather than the constant speed found in conventional ACs. Instead of shutting off once the temperature is achieved, the inverter compressor continues to operate at a low speed to maintain the temperature. It is quieter to operate and uses less energy than conventional air conditioners
- Built-In WiFi with SmartThinQ App
- Built-In Dry Contact allows for easy integration of 3rd party thermostats
- External Static Pressure Control
- Hot Start
- Auto Restart Operation: Automatically restarts a unit to programmed setting when the electricity comes on after a power failure.
- Child Lock
- Sleep Mode
- Group Control
- NEW FEATURES:
- Constant CFM Electronically Commutated Motor (ECM)
- W2 Terminal connection for third party auxiliary heat systems. The signal is passed through from third party thermostat. This in not controlled by the indoor unit.
- Auto Changeover
Must be installed by a qualified, licensed HVAC technician. Manufacturer covers parts only under warranty. Installer is responsible for labor warranty.
