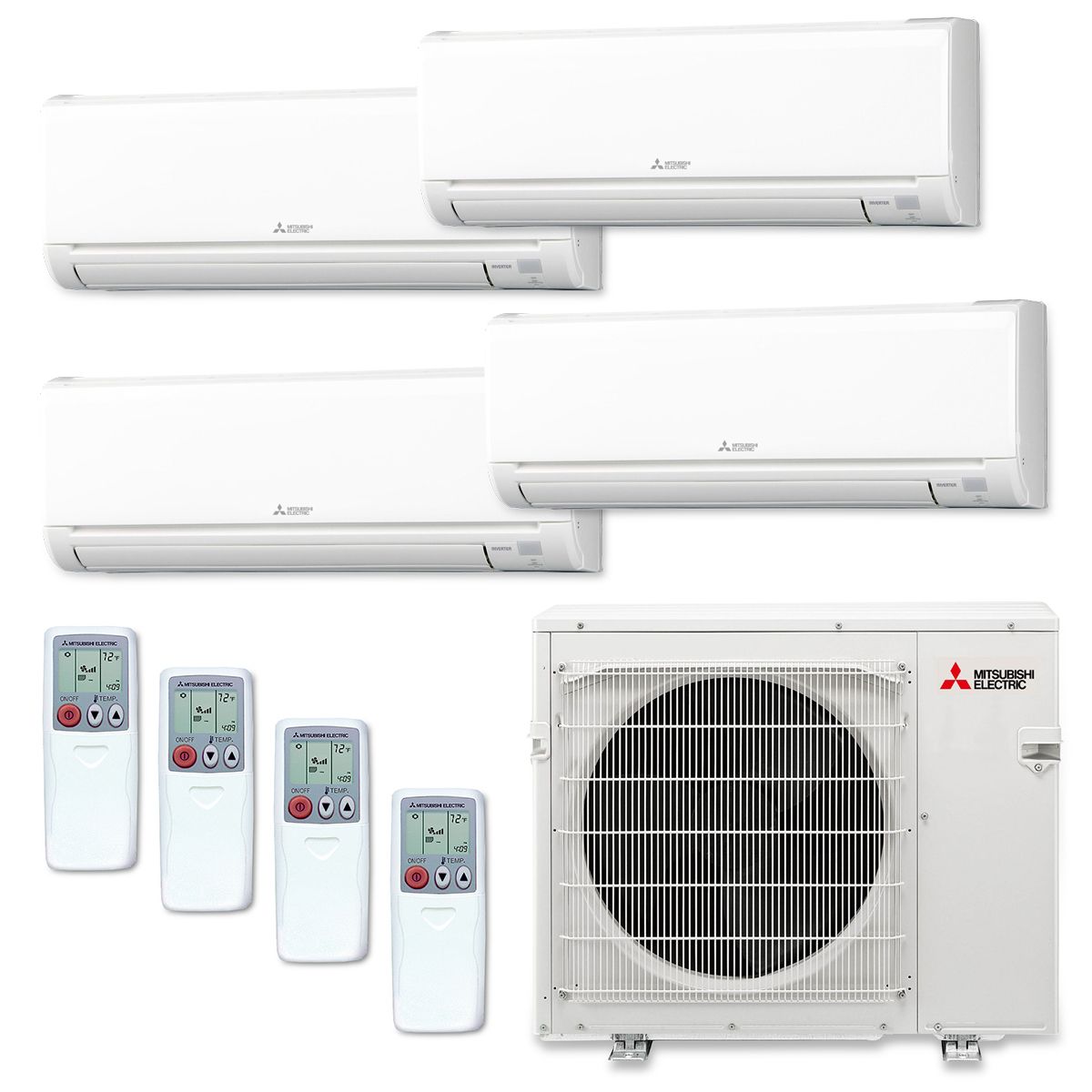

Processing. Please wait. Brand: Save Listing| Email Listing | Share Product Name: Mitsubishi Quad Zone MXZ8C48NA MSZFH09NA (TWO) MSZFH12NA MSZFH18NA hyper heat ductless split AC Heat Pump Item#: MXZ8C48NA MSZFH09NA-09-12-18 Reg Price: $20,202.48 Your Price: $7,660.78 Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - MXZ8C48NA MSZFH09NA-09-12-18 OUTDOOR UNIT MXZ8B48NA: Product Specifications Weight: 278.00 lb. Mitsubishi MXZ8B48NA System Specifications: Outdoor Unit Model: MXZ-8B48NA Performance: EER: 8.3 SEER: 15.0 HSPF 8.7 Rated Cooling Capacity (BTU): 48,000 Maximum Cooling Capacity (BTU): 54,000 Rated Heating Capacity (BTU): 54,000 Maximum Heating Capacity (BTU): 60,000 Air Circulation (CFM): 3,530 Fan Type x Quantity: Propeller x 2 Compressor Type: DC Inverter-driven Scroll Motor Output kW: 2.9 Outdoor dB(A): 55 Protection Devices: High Pressure: High Pressure Switch Compressor: Discharge Thermo/Overcurrent Detection Fan Motor: Overheating/Voltage Protection Electrical: Rated Voltage Outdoor: 208/230-1-60 Recomended Fuse Size: 50Amp MCA: 32A Electrical Connections to Indoor Units: Indoor-Outdoor S1-S2: AC 208/230V Indoor-Outdoor S2-S3: DC 12-24V Dimensions: Outdoor Dimensions WxHxD (inches): 37-7/16 x 13-13/16 x 53-3/16 Outdoor Weight (lbs): 278.0 Refrigerant Piping: Liquid Side ( Inches O.D.): 3/8 Suction Side ( Inches O.D.): 5/8 Additional Refrigearnt (Oz/Ft): .22 Maximum Pipe Lenghts (Ft): 377 Maximum Pipe Elevation Above Indoor (Ft): 98 Maximum Pipe Elevation Below Indoor (Ft): 66 Operating Range: Cooling (F): 23-115 Heating (F): 5-70 INDOOR UNIT MSZFE09NA8: Product Specifications Performance Data: Capacity, (BTU): 9000 Voltage: 208 / 230 Fuse Size, (A): 15 Minimum Amperage: 1 Airflow at Cooling, Speed Specific, Dry, (CFM): 381-339-226-162 Airflow at Cooling, Speed Specific, Wet, (CFM): 343-307-202-144 Airflow at Heating, Speed Specific, Dry, (CFM): 381-367-240-166 Moisture Removal, (Pints / hr): 2.1 Sound Output, Speed Specific, (dB): 42-40-31-22 Dimensional Data: Remote Type: Wireless Width, (in): 31.375 Depth, (in): 10.125 Height, (in): 11.625 Suction Diameter, (in): 3/8 Discharge Diameter, (in): 1/4 Weight, (lbs): 27 Warranty Data: Parts Warranty: 5 Years INDOOR UNIT MSZFE12NA8: Product Specifications Weight: 27.00 lb. MSZFE12NA8 Indoor Unit Performance: Rated Cooling Capacity (BTU): 12000 Rated Heating Capacity (BTU): 13,600 MSZFE12NA8 Indoor Unit Power: Power Supply: 1-phase, 60Hz, 208 / 230V *2 Voltage Indoor - Outdoor S1 - S2: AC 208 / 230V Voltage Indoor - Outdoor S2 - S3: DC12-24V MSZFE12NA8 Indoor Unit Specifications: MCA (A): 1.0 Airflow at Cooling Lo-Med-Hi Dry (CFM): 162-226-381-410 Airflow at Cooling Lo-Med Wet (CFM): 144-202-350-367 Airflow at Heating Lo-Med-Hi (CFM): 166-240-399-420 Cooling Sound Pressure Lo-Med-Hi (dB): 22-33-43-45 Heating Sound Pressure Lo-Med-Hi (dB): 22-23-43-44 External Finish Color: Munsell No. 1.0Y 9.2 / 0.2 MSZFE12NA8 Indoor Unit Dimensions: Width (Inches): 31-7/16 Depth (Inches): 10-1/8 Height (Inches): 11-5/8 Weight (lbs): 27 Field Drainpipe Size O.D. (Inches): 5/8 Remote Control Type: Wireless MSZFE12NA8 Indoor Unit Connections: Gas Side O.D. (Inches): 3/8 Liquid Side O.D. (Inches): 1/4 Mitsubishi Warranty: Compressor: 7 Years Parts: 5 Years INDOOR UNIT MSZFE18NA: Mitsubishi MSZ-FE18NA8 Specifications: Capacity, (BTU): 22500 Voltage: 208 / 230 Fuse Size, (A): 20 Minimum Amperage: 1 Airflow at Cooling, Speed Specific, Dry, (CFM): 738-628-469-388 Airflow at Cooling, Speed Specific, Wet, (CFM): 661-562-420-347 Airflow at Heating, Speed Specific, Dry, (CFM): 738-628-469-388 Moisture Removal, (Pints / hr): 2.7 Sound Output, Speed Specific, (dB): 53-49-41-34 Remote Type: Wireless Width, (in): 43.3125 Depth, (in): 9.375 Height, (in): 12.8125 Suction Diameter, (in): 5/8 Discharge Diameter, (in): 3/8 Weight, (lbs): 37 Parts Warranty: 5 Years • Click here for MITSUBISHI'S LIMITED WARRANTY STATEMENT Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 5 + 3 Send Shop for and browse manuals and details of MXZ8C48NA MSZFH09NA-09-12-18 Air Conditioning Company Colorado Springs, CO HVAC Contractors Largo, FL Air Conditioner Service Great Falls, MT HVAC Contractors Taylor, MI Heating Repair Quincy, IL Certified Electrician Roanoke, VA Top Watch This Item Your Phone Number: Your Email: Message here: Make an offer Quantity you would like to buy: 1 2 3 4 5 6 7 8 9 10 How much would you like to pay for each unit: Type your Message: Shipping Address: URL of the website where you saw cheaper price Or better deal: Your email address: Your phone number: E-mail a friend about this item Your friend email: Your Email: Message here: Email For Price Your Phone Number: Your Email: Shipping Zip Code: How soon do you need this product?: Immidiately Within a week Within couple of months Just looking for price Message here:
Brand: Save Listing| Email Listing | Share Product Name: Mitsubishi Quad Zone MXZ8C48NA MSZFH09NA (TWO) MSZFH12NA MSZFH18NA hyper heat ductless split AC Heat Pump Item#: MXZ8C48NA MSZFH09NA-09-12-18 Reg Price: $20,202.48 Your Price: $7,660.78 Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required
Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - MXZ8C48NA MSZFH09NA-09-12-18 OUTDOOR UNIT MXZ8B48NA: Product Specifications Weight: 278.00 lb. Mitsubishi MXZ8B48NA System Specifications: Outdoor Unit Model: MXZ-8B48NA Performance: EER: 8.3 SEER: 15.0 HSPF 8.7 Rated Cooling Capacity (BTU): 48,000 Maximum Cooling Capacity (BTU): 54,000 Rated Heating Capacity (BTU): 54,000 Maximum Heating Capacity (BTU): 60,000 Air Circulation (CFM): 3,530 Fan Type x Quantity: Propeller x 2 Compressor Type: DC Inverter-driven Scroll Motor Output kW: 2.9 Outdoor dB(A): 55 Protection Devices: High Pressure: High Pressure Switch Compressor: Discharge Thermo/Overcurrent Detection Fan Motor: Overheating/Voltage Protection Electrical: Rated Voltage Outdoor: 208/230-1-60 Recomended Fuse Size: 50Amp MCA: 32A Electrical Connections to Indoor Units: Indoor-Outdoor S1-S2: AC 208/230V Indoor-Outdoor S2-S3: DC 12-24V Dimensions: Outdoor Dimensions WxHxD (inches): 37-7/16 x 13-13/16 x 53-3/16 Outdoor Weight (lbs): 278.0 Refrigerant Piping: Liquid Side ( Inches O.D.): 3/8 Suction Side ( Inches O.D.): 5/8 Additional Refrigearnt (Oz/Ft): .22 Maximum Pipe Lenghts (Ft): 377 Maximum Pipe Elevation Above Indoor (Ft): 98 Maximum Pipe Elevation Below Indoor (Ft): 66 Operating Range: Cooling (F): 23-115 Heating (F): 5-70 INDOOR UNIT MSZFE09NA8: Product Specifications Performance Data: Capacity, (BTU): 9000 Voltage: 208 / 230 Fuse Size, (A): 15 Minimum Amperage: 1 Airflow at Cooling, Speed Specific, Dry, (CFM): 381-339-226-162 Airflow at Cooling, Speed Specific, Wet, (CFM): 343-307-202-144 Airflow at Heating, Speed Specific, Dry, (CFM): 381-367-240-166 Moisture Removal, (Pints / hr): 2.1 Sound Output, Speed Specific, (dB): 42-40-31-22 Dimensional Data: Remote Type: Wireless Width, (in): 31.375 Depth, (in): 10.125 Height, (in): 11.625 Suction Diameter, (in): 3/8 Discharge Diameter, (in): 1/4 Weight, (lbs): 27 Warranty Data: Parts Warranty: 5 Years INDOOR UNIT MSZFE12NA8: Product Specifications Weight: 27.00 lb. MSZFE12NA8 Indoor Unit Performance: Rated Cooling Capacity (BTU): 12000 Rated Heating Capacity (BTU): 13,600 MSZFE12NA8 Indoor Unit Power: Power Supply: 1-phase, 60Hz, 208 / 230V *2 Voltage Indoor - Outdoor S1 - S2: AC 208 / 230V Voltage Indoor - Outdoor S2 - S3: DC12-24V MSZFE12NA8 Indoor Unit Specifications: MCA (A): 1.0 Airflow at Cooling Lo-Med-Hi Dry (CFM): 162-226-381-410 Airflow at Cooling Lo-Med Wet (CFM): 144-202-350-367 Airflow at Heating Lo-Med-Hi (CFM): 166-240-399-420 Cooling Sound Pressure Lo-Med-Hi (dB): 22-33-43-45 Heating Sound Pressure Lo-Med-Hi (dB): 22-23-43-44 External Finish Color: Munsell No. 1.0Y 9.2 / 0.2 MSZFE12NA8 Indoor Unit Dimensions: Width (Inches): 31-7/16 Depth (Inches): 10-1/8 Height (Inches): 11-5/8 Weight (lbs): 27 Field Drainpipe Size O.D. (Inches): 5/8 Remote Control Type: Wireless MSZFE12NA8 Indoor Unit Connections: Gas Side O.D. (Inches): 3/8 Liquid Side O.D. (Inches): 1/4 Mitsubishi Warranty: Compressor: 7 Years Parts: 5 Years INDOOR UNIT MSZFE18NA: Mitsubishi MSZ-FE18NA8 Specifications: Capacity, (BTU): 22500 Voltage: 208 / 230 Fuse Size, (A): 20 Minimum Amperage: 1 Airflow at Cooling, Speed Specific, Dry, (CFM): 738-628-469-388 Airflow at Cooling, Speed Specific, Wet, (CFM): 661-562-420-347 Airflow at Heating, Speed Specific, Dry, (CFM): 738-628-469-388 Moisture Removal, (Pints / hr): 2.7 Sound Output, Speed Specific, (dB): 53-49-41-34 Remote Type: Wireless Width, (in): 43.3125 Depth, (in): 9.375 Height, (in): 12.8125 Suction Diameter, (in): 5/8 Discharge Diameter, (in): 3/8 Weight, (lbs): 37 Parts Warranty: 5 Years • Click here for MITSUBISHI'S LIMITED WARRANTY STATEMENT Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 5 + 3 Send Shop for and browse manuals and details of MXZ8C48NA MSZFH09NA-09-12-18 Air Conditioning Company Colorado Springs, CO HVAC Contractors Largo, FL Air Conditioner Service Great Falls, MT HVAC Contractors Taylor, MI Heating Repair Quincy, IL Certified Electrician Roanoke, VA Top
