General Information
Electrical Data
Power Consumption
0.3 Watts
Dimensions
Product Height
4.75 Inches
Product Width
2.75 Inches
Product Depth
0.5625 Inches
Product Weight
0.25 Pounds
Warranty Information

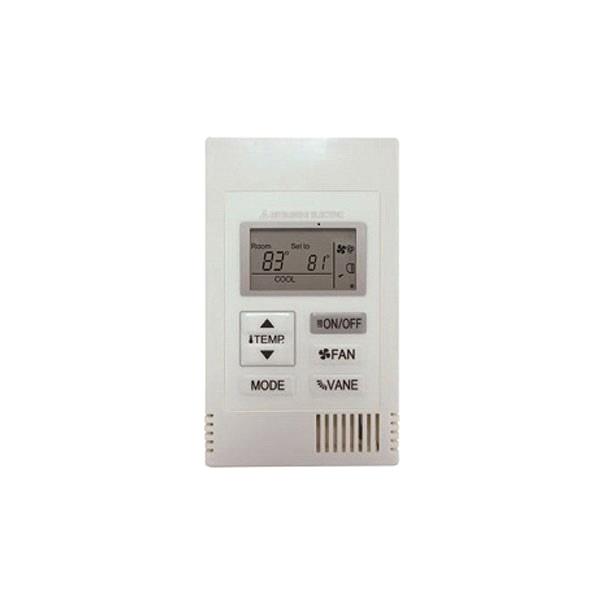

The PAC-YT53CRAU wired remote controller provides straightforward control over your unit's operation mode, desired temperature, fan speed, and airflow direction. Up to 16 separate Mitsubishi mini split indoor units may be controlled by a single PAC-YT53CRAU, making it easy to manage multiple zones with similar temperature requirements.
Product Features
Internal Temperature Sensor
There is an air temperature sensor installed within the PAC-YT53CRAU. Connected units may use this sensor instead of their own in applications where the unit's return air sensor may not accurately reflect the temperature of the zone.
Product Includes
- (1) Remote Controller Bottom Case
- (1) Remote Controller Top Case
- (2) M4x30 Roundhead Cross Slot Screws
- (2) 4.1x16 Wood Screws
Product Compatible With
- Mitsubishi Mini Split Indoor Units
Product Note
MSY-GE, MSZ-GE, and MFZ-KA mini split indoor units require a MAC-333IF-E system control interface to use this remote controller.
