Precision Temperature Control Technology

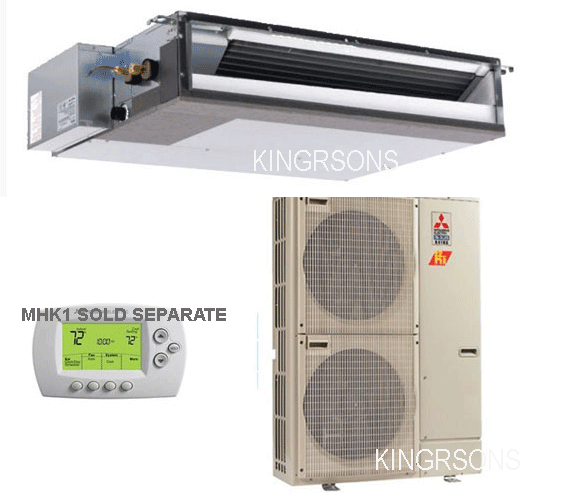

The PUZ-HA30NHA4 outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, the output of the unit can be matched to the zone for precise temperature control and improved efficiency.

H2i Technology
Low or negative ambient temperatures don't bother the PUZ-HA30NHA4. It is rated for 100% heating capacity at 5 degrees F, 90% at -4 degrees F, and 80% at -13 degrees F. The PUZ-HA30NHA also features hot-start heat-pump technology to ensure that no cold air escapes during warm up.

Dehumidification
When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves your comfort and reduces the chance of mold growth and other property damage in the conditioned space.

Vane Control
Optimal air flow is easy to achieve thanks to the vane control option. This function provides access to four different horizontal vane positions and a swing mode. Swing mode cycles through all positions for maximum coverage.

Advanced Remote Controller
The MHK1 wireless wall mounted remote controller kit supports dual set point control and multiple scheduling options. It also has Optimal Start functionality for learning how quickly your zone is cooled and heated, then adjusting scheduled operations so that the zone is always the right temperature at the right time.

Product Features

Hot-Start
Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.

Dehumidification
When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves your comfort and reduces the chance of mold growth and other property damage in the conditioned space.

Condensate Removal System
The PEAD-A30AA5 contains an internal drain mechanism capable of lifting condensate 27-9/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
