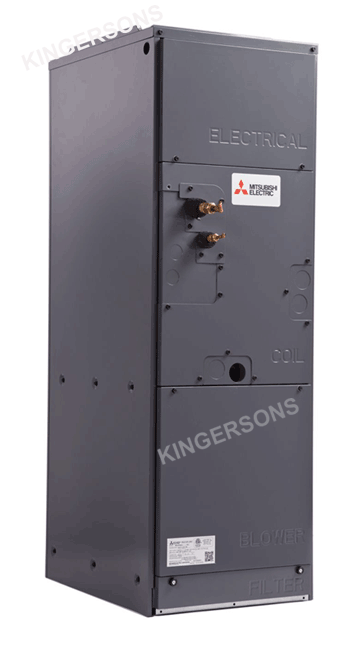

Processing. Please wait. Brand: Mitsubishi Save Listing| Email Listing | Share Product Name: Mitsubishi PVA-A36AA7 - P-Series Indoor Multi Position Air Handler, 36,000 BTU, R410A Item#: PVAA36AA7 Reg Price: $4,060.00 Your Price: $2,480.00 Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - PVAA36AA7 Mitsubishi PVA-A36AA7 - P-Series Indoor Multi Position Air Handler, 36K BTU, R410A INDOOR UNIT FEATURES Ducted air handler provides a solution to cool and heat large zones Highly efficient totally enclosed ECM motor Selectable external static pressure: 0.30, 0.50 and 0.80 in. WG with 3 fan speeds at each static setting 1 inch R4.2 fiberglass free insulation reduces condensation and boosts efficiency Positive pressure cabinet with air leakage of less than 1.0% at 1.0 in. w.g. Unique blow through design allows simple coil cleaning when the blower is removed Multi-position installation: horizontal (left or right), vertical (up or down). For downflow configurations, the CMA-1 is recommended for proper management of condensate to prevent water blow-off in certain conditions Optional electric heat kit for additional heat capacity Optional humidifier control and ERV control Installation Manual Weight 198 ERP ID 370275 Blower Motor HP 16/25 HP Blower Motor RPM 1540 Brand Mitsubishi CFM 788-1125 Circuit Breaker - Max Amps 15 Circuit Breaker - Min Amps 5.5 Cooling Capacity 14600-36000 Cubic Measurement 27.577 Cycle/Hertz 60 Hz Dimensional Weight 238 Drain Connection Size 3/4" Energy Star Rated No Equipment Type Heat Pump Filter Size 20" x 24" x 1" Height 63.75 Length 26 Mounting Type Ducted Multi-Position Phase Single Package Height 63.75 Package Length 26 Package Weight 198 Package Width 28.75 Product Family PVA Refrigerant R-410A Stage Single Tier P Series Tonnage 3 UL Listed No UOM EA Voltage 208-230 VAC Width 28.75 Air Flow Direction Multi-Position Drain Connection Quantity 2 • Click here for MITSUBISHI'S LIMITED WARRANTY STATEMENT Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 3 + 5 Send Shop for Mitsubishi and browse manuals and details of PVAA36AA7 24 Hour AC Repair Chino, CA HVAC Contractors Sammamish, WA AC Service Broomfield, CO HVAC Contractors Daytona Beach, FL AC Companies Dubuque, IA Certified Electrician Sacramento, CA Top Watch This Item Your Phone Number: Your Email: Message here: Make an offer Quantity you would like to buy: 1 2 3 4 5 6 7 8 9 10 How much would you like to pay for each unit: Type your Message: Shipping Address: URL of the website where you saw cheaper price Or better deal: Your email address: Your phone number: E-mail a friend about this item Your friend email: Your Email: Message here: Email For Price Your Phone Number: Your Email: Shipping Zip Code: How soon do you need this product?: Immidiately Within a week Within couple of months Just looking for price Message here:
Brand: Mitsubishi Save Listing| Email Listing | Share Product Name: Mitsubishi PVA-A36AA7 - P-Series Indoor Multi Position Air Handler, 36,000 BTU, R410A Item#: PVAA36AA7 Reg Price: $4,060.00 Your Price: $2,480.00 Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required
Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - PVAA36AA7 Mitsubishi PVA-A36AA7 - P-Series Indoor Multi Position Air Handler, 36K BTU, R410A INDOOR UNIT FEATURES Ducted air handler provides a solution to cool and heat large zones Highly efficient totally enclosed ECM motor Selectable external static pressure: 0.30, 0.50 and 0.80 in. WG with 3 fan speeds at each static setting 1 inch R4.2 fiberglass free insulation reduces condensation and boosts efficiency Positive pressure cabinet with air leakage of less than 1.0% at 1.0 in. w.g. Unique blow through design allows simple coil cleaning when the blower is removed Multi-position installation: horizontal (left or right), vertical (up or down). For downflow configurations, the CMA-1 is recommended for proper management of condensate to prevent water blow-off in certain conditions Optional electric heat kit for additional heat capacity Optional humidifier control and ERV control Installation Manual Weight 198 ERP ID 370275 Blower Motor HP 16/25 HP Blower Motor RPM 1540 Brand Mitsubishi CFM 788-1125 Circuit Breaker - Max Amps 15 Circuit Breaker - Min Amps 5.5 Cooling Capacity 14600-36000 Cubic Measurement 27.577 Cycle/Hertz 60 Hz Dimensional Weight 238 Drain Connection Size 3/4" Energy Star Rated No Equipment Type Heat Pump Filter Size 20" x 24" x 1" Height 63.75 Length 26 Mounting Type Ducted Multi-Position Phase Single Package Height 63.75 Package Length 26 Package Weight 198 Package Width 28.75 Product Family PVA Refrigerant R-410A Stage Single Tier P Series Tonnage 3 UL Listed No UOM EA Voltage 208-230 VAC Width 28.75 Air Flow Direction Multi-Position Drain Connection Quantity 2 • Click here for MITSUBISHI'S LIMITED WARRANTY STATEMENT Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 3 + 5 Send Shop for Mitsubishi and browse manuals and details of PVAA36AA7 24 Hour AC Repair Chino, CA HVAC Contractors Sammamish, WA AC Service Broomfield, CO HVAC Contractors Daytona Beach, FL AC Companies Dubuque, IA Certified Electrician Sacramento, CA Top
