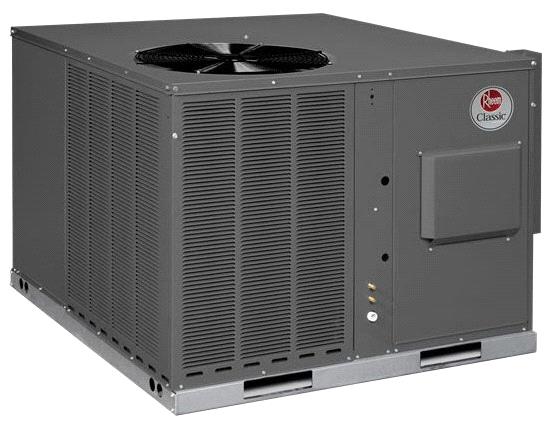

Processing. Please wait. Brand: Rheem Save Listing| Email Listing | Share Product Name: Rheem RGEA14036AJD081AAAJA Classic 3 Ton 14 SEER Packaged Gas/Electric Unit Stainless Steel Heat Exchanger Item#: RGEA14036AJD081AAAJA Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - RGEA14036AJD081AAAJA Installation Instructions Specifications Weight 416.0 Pound (lb.) Length 52.4 Inches (in) Width 47.5 Inches (in) Height 35.9 Inches (in) UPC or Barcode 662021370694 Hazardous Material No EPA Cert Required No Brand Rheem Tier Classic Series Equipment Type Dual Fuel Tonnage 3 SEER 14 EER 12 Refrigerant R-410a AFUE 81% CFM 2,700 Cooling Capacity 36000 Heating Capacity 80000 BTU Input 80000 BTU Output 64000 Voltage 208-230 VAC Phase Single Cycle/Hertz 60 Minimum Circuit Amps 22 Blower Motor HP 1/2 HP Condenser Motor HP 1/2 HP Rated Load Amps 14.1 Locked Rotor Amps 77 Certifications AHRI Color Gray Compressor Scroll Gas Connection 1/2" [12.7 mm] N.P.T. Sound Level (dBA) 76 Energy Star Rated Yes UL Listed Yes    Description Rheem Classic® Series feature Scroll compressors for maximum efficiency and quiet operation. Features Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes. One-piece top with a deep flange to help keep water out of the unit. Supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork. Access panels have "weep holes" and channels to further help manage water run-off. Side and down discharge options available on all models. All models are shipped ready for horizontal application. Easily accessible blower section complete with slide-out blower. Refrigerant connections are conveniently located for easy service diagnostics. Micro Channel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. Its easier to clean and has a more robust surface. Inside the easily accessible furnace compartment is the draft inducer motor. This motor is specially designed for quiet reliable operation. In addition to the draft inducer motor, the in-shot gas burners and manifold efficiently regulate the flow of gas for combustion. These new gas/electric units also feature direct-spark ignition and remote flame sensors for added reliability and efficiency. All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap. Easily accessible control box. Single point wiring simplifies installation. Our gas/electric package units feature a tubular heat exchanger design. Tubular heat exchangers are more efficient and durable than older-style clamshell heat exchangers. The heat exchanger is backed by a 10 year limited warranty. Models with a stainless steel heat exchanger installed in a residential application are backed by a limited lifetime warranty. Thermal expansion valve standard on all models for superior superheat control, reliability, and energy efficiency at all operating conditions. Filter drier standard on all models (not shown). Rugged base rail included for improved installation and handling Complete factory charged, wired and run tested. Molded compressor plugs. A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality. General Terms Of Limited Warranty* Rheem will furnish a replacement for any part of this product which fails in normal use and service within the applicable periods stated, in accordance with the terms of the limited warranty.Heat Exchanger Factory Standard: Ten (10) Years Stainless Steel/1-Phase & 3-Phase Models Commercial Application: Twenty (20) Years Stainless Steel/1-Phase Models Residential Application: Limited LifetimeConditional Parts (Registration Required) 1 Phase, Residential Applications: Ten (10) YearsCompressor 1 Phase, Residential applications: Ten (10) Years 1 & 3 Phase, Commercial Applications: Five (5) YearsParts Commercial Applications: One (1) Year Damaged/Scratches-Old Stock Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 5 + 4 Send Shop for Rheem and browse manuals and details of RGEA14036AJD081AAAJA Air Conditioner Repair Chelsea, MA HVAC Contractors Pensacola, FL AC Company Paramount, CA HVAC Contractors Baton Rouge, LA Air Conditioning Companies St. Cloud, MN Certified Electrician Barnstable Town, MA Top Watch This Item Your Phone Number: Your Email: Message here: Make an offer Quantity you would like to buy: 1 2 3 4 5 6 7 8 9 10 How much would you like to pay for each unit: Type your Message: Shipping Address: URL of the website where you saw cheaper price Or better deal: Your email address: Your phone number: E-mail a friend about this item Your friend email: Your Email: Message here: Email For Price Your Phone Number: Your Email: Shipping Zip Code: How soon do you need this product?: Immidiately Within a week Within couple of months Just looking for price Message here:
Brand: Rheem Save Listing| Email Listing | Share Product Name: Rheem RGEA14036AJD081AAAJA Classic 3 Ton 14 SEER Packaged Gas/Electric Unit Stainless Steel Heat Exchanger Item#: RGEA14036AJD081AAAJA Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required
Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - RGEA14036AJD081AAAJA Installation Instructions Specifications Weight 416.0 Pound (lb.) Length 52.4 Inches (in) Width 47.5 Inches (in) Height 35.9 Inches (in) UPC or Barcode 662021370694 Hazardous Material No EPA Cert Required No Brand Rheem Tier Classic Series Equipment Type Dual Fuel Tonnage 3 SEER 14 EER 12 Refrigerant R-410a AFUE 81% CFM 2,700 Cooling Capacity 36000 Heating Capacity 80000 BTU Input 80000 BTU Output 64000 Voltage 208-230 VAC Phase Single Cycle/Hertz 60 Minimum Circuit Amps 22 Blower Motor HP 1/2 HP Condenser Motor HP 1/2 HP Rated Load Amps 14.1 Locked Rotor Amps 77 Certifications AHRI Color Gray Compressor Scroll Gas Connection 1/2" [12.7 mm] N.P.T. Sound Level (dBA) 76 Energy Star Rated Yes UL Listed Yes    Description Rheem Classic® Series feature Scroll compressors for maximum efficiency and quiet operation. Features Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes. One-piece top with a deep flange to help keep water out of the unit. Supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork. Access panels have "weep holes" and channels to further help manage water run-off. Side and down discharge options available on all models. All models are shipped ready for horizontal application. Easily accessible blower section complete with slide-out blower. Refrigerant connections are conveniently located for easy service diagnostics. Micro Channel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. Its easier to clean and has a more robust surface. Inside the easily accessible furnace compartment is the draft inducer motor. This motor is specially designed for quiet reliable operation. In addition to the draft inducer motor, the in-shot gas burners and manifold efficiently regulate the flow of gas for combustion. These new gas/electric units also feature direct-spark ignition and remote flame sensors for added reliability and efficiency. All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap. Easily accessible control box. Single point wiring simplifies installation. Our gas/electric package units feature a tubular heat exchanger design. Tubular heat exchangers are more efficient and durable than older-style clamshell heat exchangers. The heat exchanger is backed by a 10 year limited warranty. Models with a stainless steel heat exchanger installed in a residential application are backed by a limited lifetime warranty. Thermal expansion valve standard on all models for superior superheat control, reliability, and energy efficiency at all operating conditions. Filter drier standard on all models (not shown). Rugged base rail included for improved installation and handling Complete factory charged, wired and run tested. Molded compressor plugs. A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality. General Terms Of Limited Warranty* Rheem will furnish a replacement for any part of this product which fails in normal use and service within the applicable periods stated, in accordance with the terms of the limited warranty.Heat Exchanger Factory Standard: Ten (10) Years Stainless Steel/1-Phase & 3-Phase Models Commercial Application: Twenty (20) Years Stainless Steel/1-Phase Models Residential Application: Limited LifetimeConditional Parts (Registration Required) 1 Phase, Residential Applications: Ten (10) YearsCompressor 1 Phase, Residential applications: Ten (10) Years 1 & 3 Phase, Commercial Applications: Five (5) YearsParts Commercial Applications: One (1) Year Damaged/Scratches-Old Stock Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 5 + 4 Send Shop for Rheem and browse manuals and details of RGEA14036AJD081AAAJA Air Conditioner Repair Chelsea, MA HVAC Contractors Pensacola, FL AC Company Paramount, CA HVAC Contractors Baton Rouge, LA Air Conditioning Companies St. Cloud, MN Certified Electrician Barnstable Town, MA Top
Weight 416.0 Pound (lb.) Length 52.4 Inches (in) Width 47.5 Inches (in) Height 35.9 Inches (in) UPC or Barcode 662021370694 Hazardous Material No EPA Cert Required No Brand Rheem Tier Classic Series Equipment Type Dual Fuel Tonnage 3 SEER 14 EER 12 Refrigerant R-410a AFUE 81% CFM 2,700 Cooling Capacity 36000 Heating Capacity 80000 BTU Input 80000 BTU Output 64000 Voltage 208-230 VAC Phase Single Cycle/Hertz 60 Minimum Circuit Amps 22 Blower Motor HP 1/2 HP Condenser Motor HP 1/2 HP Rated Load Amps 14.1 Locked Rotor Amps 77 Certifications AHRI Color Gray Compressor Scroll Gas Connection 1/2" [12.7 mm] N.P.T. Sound Level (dBA) 76 Energy Star Rated Yes UL Listed Yes    Description Rheem Classic® Series feature Scroll compressors for maximum efficiency and quiet operation. Features Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes. One-piece top with a deep flange to help keep water out of the unit. Supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork. Access panels have "weep holes" and channels to further help manage water run-off. Side and down discharge options available on all models. All models are shipped ready for horizontal application. Easily accessible blower section complete with slide-out blower. Refrigerant connections are conveniently located for easy service diagnostics. Micro Channel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. Its easier to clean and has a more robust surface. Inside the easily accessible furnace compartment is the draft inducer motor. This motor is specially designed for quiet reliable operation. In addition to the draft inducer motor, the in-shot gas burners and manifold efficiently regulate the flow of gas for combustion. These new gas/electric units also feature direct-spark ignition and remote flame sensors for added reliability and efficiency. All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap. Easily accessible control box. Single point wiring simplifies installation. Our gas/electric package units feature a tubular heat exchanger design. Tubular heat exchangers are more efficient and durable than older-style clamshell heat exchangers. The heat exchanger is backed by a 10 year limited warranty. Models with a stainless steel heat exchanger installed in a residential application are backed by a limited lifetime warranty. Thermal expansion valve standard on all models for superior superheat control, reliability, and energy efficiency at all operating conditions. Filter drier standard on all models (not shown). Rugged base rail included for improved installation and handling Complete factory charged, wired and run tested. Molded compressor plugs. A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality. General Terms Of Limited Warranty* Rheem will furnish a replacement for any part of this product which fails in normal use and service within the applicable periods stated, in accordance with the terms of the limited warranty.Heat Exchanger Factory Standard: Ten (10) Years Stainless Steel/1-Phase & 3-Phase Models Commercial Application: Twenty (20) Years Stainless Steel/1-Phase Models Residential Application: Limited LifetimeConditional Parts (Registration Required) 1 Phase, Residential Applications: Ten (10) YearsCompressor 1 Phase, Residential applications: Ten (10) Years 1 & 3 Phase, Commercial Applications: Five (5) YearsParts Commercial Applications: One (1) Year Damaged/Scratches-Old Stock
