Product Details

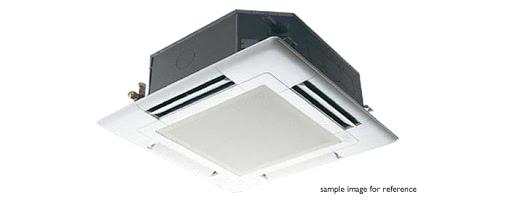

Mitsubishi Mr. SLZKA12NA Inverter Compact Ceiling Cassette 24"x24" Heat Pump - 12,000 BTU
The high efficiency of these Mitshubishi Mr. Slim Mini Split Ductless Systems like SLZ-KA12NA helps them pay for hemselves by slashing electrical costs. Strong, quiet and efficient DC motors are used both indoors and outdoors. This Mitsubishi`s Super High-SEER mini-split heat pump will provide you with 14,100 BTU of heating for winter and 1 ton of cooling for hot summer and it comes with 1-SLZ-KA12NA floor console unit with wireless remote control (NOT Included). This unit can be connected to the any modern MXZ-B - outdoor condensing unit. Complete system creates the perfect climate control for your space. High performance fan blades, condensers and evaporators combined with variable speed inverter-driven compressors are made for unmatched performance. Variable speed compressors automatically adjust to fluctuating room capacity requirements. Since mini splits have little-to-no ducting, they forego those energy losses typically associated central forced-air systems. Duct losses can easily account for more than 30% of energy consumption, especially if the ducts are not sealed tight or in an unconditioned space such as an attic or crawlspace.

What is Mitsubishi Mr. Slim SLZKA12NA Inverter Compact Floor-Mounted Console Heat Pump?

The new range is specifically designed to discreetly sit at 24"x24" ceiling space level and could replace traditional floor and wall mounted heating appliances such asnight-store heaters. Long air outlets deliver wide air streams for excellent air distribution and energy savings. This feature means quieter air delivery with fewer drafts and great overall cooling and heating coverage A comprehensive deodorising and air purifying filter system will ensure healthier and cleaner air. It does have 4-way air distribution and flush mount ceiling grill. In the HEATING mode each air outlet vane operates independently, distributing warm air in multiple directions for the best in room heating. Each of the four vanes can be set by the wired remote controller to operate independently to match the room layout. Specific vane settings include five fixed directions plus swing.

Mitsibishi Mr. Slim Mini-Split Heat Pump Systems are Flexible and Quiet

Mini splits offer flexibility because they can be suspended from a ceiling, mounted flush behind a drop ceiling, hung on a wall or floor-standing. Ductless heat pumps allow for a peaceful inside environment by enabling the contractor to install components like compressors and motors outdoors. Bedrooms, living rooms, dining rooms, basements, sunrooms, new additions and renovations are applications that can take full advantage of the single and multi-room Mitsubishi systems

Mitsubishi Mr. Slim SLZKA12NA Inverter Ceiling Cassette Heat Pump - Maximum Heat Output, Optimum Air Distribution.
Perfect room temperatures at any time are realised through dual top and bottom air flow with thermostatically controlled vanes to eliminate cool drafts whilst heating. Mitsubishi Electric Inverter Control (unlike other brands) will allow maximum rated heat output indefinitely without the requirement to return to the nominal rated output. Optimum comfort conditions are guaranteed in the shortest period of time. This is vital when outdoor temperatures drop below freezing point or when the unit is first turned on.

Mitsubishi Mr. Slim SLZ-KA12NA Inverter Ceiling Cassette Heat Pump - 12,000 BTU at a glance:

Inverter Ceiling Cassette Console SLZKA12NA Unit

•Stylish, slim and elegant, Ceiling Cassetteole units are designed to complement any interior decor.
•2`x2` Compact size.
•Long-life air filter included with indoor unit.
•Wide air-flow pattern for better air distribution
•Built-in drain mechanism for condensate removal; lifts to 19-11/16"
•Wired remote control. (NOT Included)
•Automatic swinging louvers.
Mitsubishi`s Multiple Filters for Cleaner, Healthier Air

•Mitsubishi indoor units use a sophisticated multi-part filter system to remove contaminants such as allergens, viruses and bacteria from the air as it circulates. The combination of Catechin + Anti-Allergy Enzyme Filters ensure effective deodorisation, active filtering and the dramatic reduction of common allergens and bacteria. This is the key to cleaner and healthier air. A hybrid-coating process makes the catechin filter washable and, if properly maintained with monthly cleanings, effective for more than 10 years.Mitsubishi Mr. Slim Inverter Technology

•Maximizes energy savings by making sure only the energy needed to cool or heat an area is used.Mitsubishi Mr. Slim Programmable ComfortSmart Set featured on MSZ-GE systems provides the option to program multiple settings into one "quick" press feature providing an additional level of comfort control.

Mitsubishi Mr. Slim Powerful Mode

•The POWERFUL mode (found on select systems) is available to cool or heat any desired space quickly by lowering the set temperature in cooling mode or raising the set temperature in heating mode, both by 7° F. In Powerful Mode, the fan speed increases for 15 minutes then resumes standard operation.Mitsubishi Mr. Slim System Control in the Palm of Your Hand

•Mitsubishi Electric offers a comprehensive remote controller that controls temperature, fan speed and more. Choose from four modes: COOL, HEAT, AUTO and DRY. The controlleralso has a 12-hour ON/OFF timer for one-button control of your personal comfort.
Mitsubishi Mr. Slim SLZKA12NA Inverter Compact Ceiling Cassette Console Heat Pump - 12,000 BTU Other Standard Features :
•All Mitsubishi Mr. Slim Systems Have ISO and ETL Approvals for U.S. and Canada.
•Environmentally Friendly and ARI performance certified.
•Sleek, Modern Design with Easy to Access Controls and Visible System.
•Sleep Timer.
•12 Hour Timer.
•Auto Louver: Up/ Down - Wall Mounted Units Only.
•Coil Dry Mode - Wall Mounted Units Only.
•Auto Restart.
•Quiet Mode - Wall Mounted Units Only.
•Dry Mode.
•Cold Prevention.
•Return Air-intake - Concealed Units Only.
•Economy Mode.
•Low Ambient.
•Auto Changeover.
•Auto Restart/Reset.
•Branch Duct Capable - Concealed Units Only.
•Wired/Wireless Switching.

Mitsubishi Mr Slim SLZ-KA12NA Inverter Compact Ceiling Cassette Console Heat Pump - 12,000 BTU Includes:

•Mitsubishi Mr Slim SLZ-KA12NA Compact Ceiling Cassette Console Unit.
•Mitsubishi Mr Slim SLP15AAUW Grill
•Mitsubishi Mr Slim Wireless Remote Controller (Sold Separately).
•Installation manual.

Mitsubishi Mr Slim SLZ-KA12NA Inverter Compact Ceiling Cassette Console Heat Pump Optional Accessories:

•Mitsubishi M-NET Control Adapter (MAC-399IF)
•Mitsubishi MA Contact Terminal Interface (MAC-397IF)
•Mitsubishi Wired Remote Controller (PAR-21MAA; requires MAC-397IF)                              •Mitsubishi Lockdown Bracket for Handheld Controller (RCMKP1CB)
•Mitsubishi Outdoor Air Sensor (MOS1; for use with Central Controller (MRCH1), Wireless Remote Controller Kit (MHK1) and Portable Central Controller (MCCH1)
•Mitsubishi Portable Central Controller (MCCH1; for use with Wireless Remote Controller Kit MHK1)
•Mitsubishi Wireless Receiver (MIFH1)
•Mitsubishi Wired Remote Controller (PAR-21MAA; requires MAC-397IF)
•Mitsubishi Wall-mounted Central Controller (MRCH1)
•Mitsubishi Wireless Remote Controller Kit (MHK1) with Wall-mounted Central Controller (MRCH1), Wireless Receiver (MIFH1), and cable
•Mitsubishi Handheld Wireless Remote Controller (PAR-FL32MA; req. PAR-SA9FA)
•Mitsubishi Receiver Kit for PAR-FL32MA Handheld Wireless Remote Controller (PAR-SA9FA)

The Mitsubishi Mr Slim SLZKA12NA Inverter Compact Floor-Mounted Console Heat Pump is not a complete system. It can be paired with any compatible outdoor unit, including:
•MXZ2B20NA - Dual Zone 20,000 BTU Outdoor Heat Pump Condensor
•MXZ3B24NA - Tri Zone 24,000 BTU Outdoor Heat Pump Condensor
•MXZ3B30NA - Tri Zone 36,000 BTU Outdoor Heat Pump Condensor
•MXZ4B36NA - Quad Zone 36,000 BTU Outdoor Heat Pump Condensor
•MXZ8B48NA - Eight Zone 48,000 BTU Outdoor Heat Pump Condensor

The Mitsubishi Mr Slim SLZKA12NA it will also be paired with any of the following units for multi-zone use:
•MSZGE06NA - 6,000 BTU Wall Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•MSZGE09NA - 9,000 BTU Wall Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•MSZFE09NA - 9,000 BTU Hyper-Heat Wall Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•MSZGE12NA - 12,000 BTU Wall Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•MSZFE12NA - 12,000 BTU Hyper-Heat Wall Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•MSZGE15NA - 15,000 BTU Wall Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•MSZGE18NA - 18,000 BTU Wall Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•MSZGE24NA - 24,000 BTU Wall Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•SEZKD09NA and SEZKD09NA4 - 9,000 BTU Ceiling-Concealed Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•SEZKD12NA and SEZKD12NA4 - 12,000 BTU Ceiling-Concealed Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•SEZKD15NA and SEZKD15NA4 - 15,000 BTU Ceiling-Concealed Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•SEZKD18NA and SEZKD18NA4 - 18,000 BTU Ceiling-Concealed Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•MFZKA09NA - 9,000 BTU Floor-Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•MFZKA12NA - 12,000 BTU Floor-Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•MFZKA18NA - 18,000 BTU Floor-Mounted Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•SLZKA09NA - 9,000 BTU 24"x24" Ceiling Cassette Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•SLZKA12NA - 12,000 BTU 24"x24" Ceiling Cassette Indoor Unit for MXZ-B Multi-Zone Heat-Pump System
•SLZKA15NA - 15,000 BTU 24"x24" Ceiling Cassette Indoor Unit for MXZ-B Multi-Zone Heat-Pump System

Mitsubishi Mr Slim SLZKA12NA Inverter Compact Floor-Mounted Console Heat Pump can be controlled by these types of Zone Controllers (sold separately):

•PAR-21MAA, requires MAC-397IF. Wired R/C. 7-Day Programmable
•PAC-AKA51BC - 5 Port Branch Box
•PAC-AKA31BC - 3 Port Branch Box.
