Processing. Please wait. Brand: TradePro Save Listing| Email Listing | Share Product Name: TradePro TP-C16-1SP2 - Condenser Motor - 1 Speed, 1075 RPM, 230 Volt, 1/6 Horsepower Item#: TP-C16-1SP2 Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - TP-C16-1SP2 Name TradePro TP-C16-1SP2 - Condenser Motor - 1 Speed, 1075 RPM, 230 Volt, 1/6 Horsepower Brand TradePro Item Number TP-C16-1SP2 Manufacturer Product Number TP-C16-1SP2 SKU - PIM Number 1418039134043 Item Number 154369 UPC 00816075029651 Unit of Measure EACH Weight 10.0 Pound (lb.) Length 4.6 Inches (in) Width 5.6 Inches (in) Height 5.6 Inches (in) Hazardous Material No EPA Cert Required No Country of Origin MEX Voltage 208-230 VAC Full Load Amps 1.2 Amps 1.2 Phase Single Cycle/Hertz 60 Capacitor MFD µF 10/370 Rotation Reversible Insulation Class B Motor Type PSC Shaft Diameter 1/2" Shaft Length 5 Bearing Type SAB Duty Continuous Duty Enclosure TEAO Lead Length 36 NEMA Frame 48Y Number of Bearings 2 Number of Poles 6 Number of Speeds 1 Poles Six Protection Auto Service Factor 1 Thermal Protection Yes Type Condenser Fan Warranty Offered 1 Year UL Recognized Yes Motor HP 1/6 HP UL Listed No RPM 1075 Universal fixed fractional condenser motor. 208-230V single phase, 1.2 amp draw. Side shell mount, pre-drilled to accept Rheem mounting plate, end plate drilled to accept Rheem or Trane mounts. 48 frame, 5" keyed shaft, 1/2" diameter, Dynamic Self Aligning bearing, reversible direction. 10mf 370 or 440V capacitor. Mounts in any position.Please Note! The actual brand name on product received may vary from the description but will always be manufactured to the same strict standard of quality. Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 5 + 2 Send Shop for TradePro and browse manuals and details of TP-C16-1SP2 Air Conditioning Company Kalamazoo, MI HVAC Contractors Lafayette, LA Air Conditioner Service Aliso Viejo, CA HVAC Contractors State College, PA Heating Repair Cleveland, OH Certified Electrician Avondale, AZ Top Watch This Item Your Phone Number: Your Email: Message here: Make an offer Quantity you would like to buy: 1 2 3 4 5 6 7 8 9 10 How much would you like to pay for each unit: Type your Message: Shipping Address: URL of the website where you saw cheaper price Or better deal: Your email address: Your phone number: E-mail a friend about this item Your friend email: Your Email: Message here: Email For Price Your Phone Number: Your Email: Shipping Zip Code: How soon do you need this product?: Immidiately Within a week Within couple of months Just looking for price Message here:
Brand: TradePro Save Listing| Email Listing | Share Product Name: TradePro TP-C16-1SP2 - Condenser Motor - 1 Speed, 1075 RPM, 230 Volt, 1/6 Horsepower Item#: TP-C16-1SP2 Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required
Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - TP-C16-1SP2 Name TradePro TP-C16-1SP2 - Condenser Motor - 1 Speed, 1075 RPM, 230 Volt, 1/6 Horsepower Brand TradePro Item Number TP-C16-1SP2 Manufacturer Product Number TP-C16-1SP2 SKU - PIM Number 1418039134043 Item Number 154369 UPC 00816075029651 Unit of Measure EACH Weight 10.0 Pound (lb.) Length 4.6 Inches (in) Width 5.6 Inches (in) Height 5.6 Inches (in) Hazardous Material No EPA Cert Required No Country of Origin MEX Voltage 208-230 VAC Full Load Amps 1.2 Amps 1.2 Phase Single Cycle/Hertz 60 Capacitor MFD µF 10/370 Rotation Reversible Insulation Class B Motor Type PSC Shaft Diameter 1/2" Shaft Length 5 Bearing Type SAB Duty Continuous Duty Enclosure TEAO Lead Length 36 NEMA Frame 48Y Number of Bearings 2 Number of Poles 6 Number of Speeds 1 Poles Six Protection Auto Service Factor 1 Thermal Protection Yes Type Condenser Fan Warranty Offered 1 Year UL Recognized Yes Motor HP 1/6 HP UL Listed No RPM 1075 Universal fixed fractional condenser motor. 208-230V single phase, 1.2 amp draw. Side shell mount, pre-drilled to accept Rheem mounting plate, end plate drilled to accept Rheem or Trane mounts. 48 frame, 5" keyed shaft, 1/2" diameter, Dynamic Self Aligning bearing, reversible direction. 10mf 370 or 440V capacitor. Mounts in any position.Please Note! The actual brand name on product received may vary from the description but will always be manufactured to the same strict standard of quality. Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 5 + 2 Send Shop for TradePro and browse manuals and details of TP-C16-1SP2 Air Conditioning Company Kalamazoo, MI HVAC Contractors Lafayette, LA Air Conditioner Service Aliso Viejo, CA HVAC Contractors State College, PA Heating Repair Cleveland, OH Certified Electrician Avondale, AZ Top

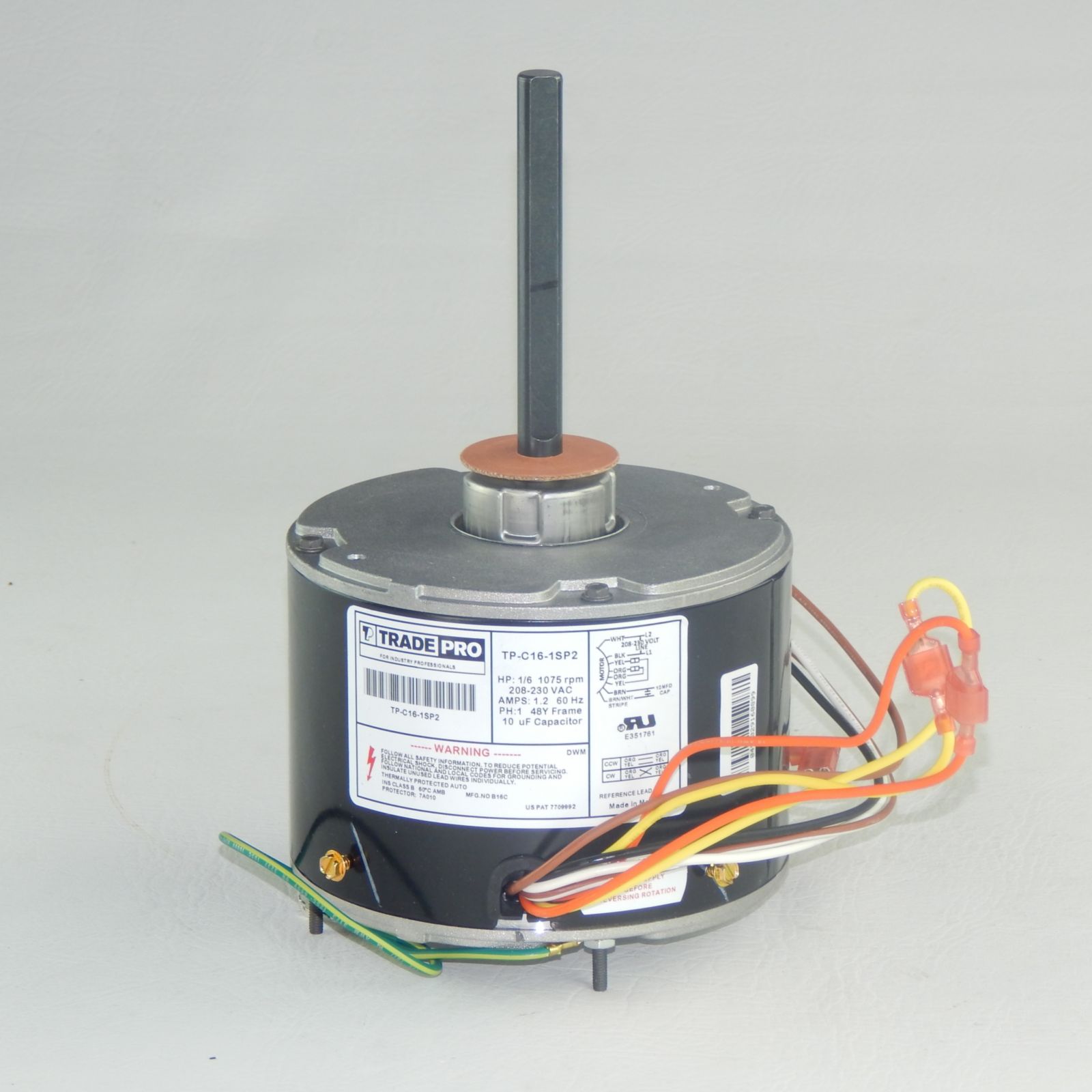

Universal fixed fractional condenser motor. 208-230V single phase, 1.2 amp draw. Side shell mount, pre-drilled to accept Rheem mounting plate, end plate drilled to accept Rheem or Trane mounts. 48 frame, 5" keyed shaft, 1/2" diameter, Dynamic Self Aligning bearing, reversible direction. 10mf 370 or 440V capacitor. Mounts in any position.Please Note! The actual brand name on product received may vary from the description but will always be manufactured to the same strict standard of quality.
