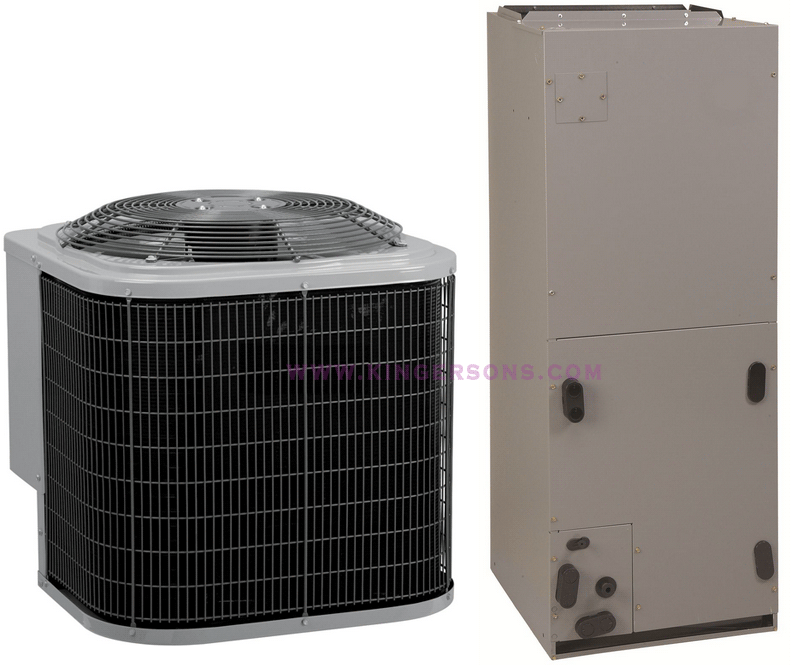

Processing. Please wait. Brand: Grandaire Save Listing| Email Listing | Share Product Name: Grandaire WCH3244GKB WAPM244A Ecotemp 2 Ton 13 SEER Heat Pump Air Conditioner 208/230 Item#: WCH3244GKB WAPM244A Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - WCH3244GKB WAPM244A Outdoor Unit Specifications Pdf Description Heat Pump Condenser, Features include:REFRIGERATION CIRCUIT Scroll compressors on all models Suction line accumulator factory installed Integrated solid state control with Time - Temperature Defrost High and Low pressure switches Copper tube / aluminum fin coil Factory supplied liquid line filter drierEASY TO INSTALL AND SERVICE Easy Access service valves on all models External high and low refrigerant service ports Only two screws to access control panel Factory charged with R-410A refrigerantBUILT TO LAST Pre-painted cabinet finish over galvanized steel Coated inlet grille with 3/8" (10mm) grille spacing for extra protection (hail guard) Outdoor Unit Specifications Weight 124.0 Pound (lb.) Length 23.1 Inches (in) Width 23.1 Inches (in) Height 31.8 Inches (in) Country of Origin USA UPC or Barcode 1PWCH3244GKB Hazardous Material No EPA Cert Required No Non Inverter Yes Refrigerant R-410a Cycle/Hertz 60 UL Recognized Yes Phase Single Brand Ecotemp Motor Type PSC Voltage 208/230 VAC Maximum Fuse Size 25.0 Rows 1 Suction Line Fitting 3/4 Tonnage 2 UL Listed Yes SEER 13 Nominal Capacity (Tons) 2 CFM 2100 Minimum Circuit Amps 16.8 Cooling Capacity 24,000 Liquid Line Fitting 3/8 Motor HP 1/10 HP Equipment Type Heat Pump Sound Level dBA 71 • Indoor Unit Spec Pdf DescriptionMultiposition Air Handler, Features include: 1-1/2 thru 4 tons Available for environmentally sound R-410A systems Factory installed piston metering device with Teflon ring Sweat connections Primary and secondary drain fittings Sweat connections Primary and secondary drain fittings Multiple electrical entry locations Time delay relay (TDR) Field installed heater packages from 5 kW - 30 kW available separately HUD approved for manufactured housing 208/230-1-60 supply voltage Units tested and certified by manufacturer to achieve a 2% or less leakage rate at 1.0 inch water column 1 inch thick insulation with R value of 4.2 Filter (washable) available as accessory ECM 5-speed motor Multiposition installation - upflow or horizontal left standard, horizontal right with minor modification (field convertible to downflow with available accessory kit) Low voltage circuit protective fuse (3 amp) inline on wire harness No Heat (Plug) Kit factory installed Specifications Weight 112.0 Pound (lb.) Length 22.1 Inches (in) Width 14.3 Inches (in) Height 42.7 Inches (in) Country of Origin USA UPC or Barcode 1PWAPM244A Hazardous Material No EPA Cert Required No UL Recognized Yes CFM 800 Refrigerant R-410a Suction Line Fitting 5/8 Blower Type ECM Minimum Circuit Amps 5.1 Maximum Fuse Size 15.0 Liquid Line Fitting 3/8 Nominal Capacity (Tons) 2 Phase Single Brand Ecotemp UL Listed Yes Tonnage 2 Cycle/Hertz 60 Voltage 208/230 VAC Blower Motor HP 1/3 HP Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 2 + 7 Send Shop for Grandaire and browse manuals and details of WCH3244GKB WAPM244A Air Conditioner Repair Grand Island, NE HVAC Contractors Urbandale, IA AC Company Blacksburg, VA HVAC Contractors Huntersville, NC Air Conditioning Companies Euclid, OH Certified Electrician Sioux Falls, SD Top Watch This Item Your Phone Number: Your Email: Message here: Make an offer Quantity you would like to buy: 1 2 3 4 5 6 7 8 9 10 How much would you like to pay for each unit: Type your Message: Shipping Address: URL of the website where you saw cheaper price Or better deal: Your email address: Your phone number: E-mail a friend about this item Your friend email: Your Email: Message here: Email For Price Your Phone Number: Your Email: Shipping Zip Code: How soon do you need this product?: Immidiately Within a week Within couple of months Just looking for price Message here:
Brand: Grandaire Save Listing| Email Listing | Share Product Name: Grandaire WCH3244GKB WAPM244A Ecotemp 2 Ton 13 SEER Heat Pump Air Conditioner 208/230 Item#: WCH3244GKB WAPM244A Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required
Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - WCH3244GKB WAPM244A Outdoor Unit Specifications Pdf Description Heat Pump Condenser, Features include:REFRIGERATION CIRCUIT Scroll compressors on all models Suction line accumulator factory installed Integrated solid state control with Time - Temperature Defrost High and Low pressure switches Copper tube / aluminum fin coil Factory supplied liquid line filter drierEASY TO INSTALL AND SERVICE Easy Access service valves on all models External high and low refrigerant service ports Only two screws to access control panel Factory charged with R-410A refrigerantBUILT TO LAST Pre-painted cabinet finish over galvanized steel Coated inlet grille with 3/8" (10mm) grille spacing for extra protection (hail guard) Outdoor Unit Specifications Weight 124.0 Pound (lb.) Length 23.1 Inches (in) Width 23.1 Inches (in) Height 31.8 Inches (in) Country of Origin USA UPC or Barcode 1PWCH3244GKB Hazardous Material No EPA Cert Required No Non Inverter Yes Refrigerant R-410a Cycle/Hertz 60 UL Recognized Yes Phase Single Brand Ecotemp Motor Type PSC Voltage 208/230 VAC Maximum Fuse Size 25.0 Rows 1 Suction Line Fitting 3/4 Tonnage 2 UL Listed Yes SEER 13 Nominal Capacity (Tons) 2 CFM 2100 Minimum Circuit Amps 16.8 Cooling Capacity 24,000 Liquid Line Fitting 3/8 Motor HP 1/10 HP Equipment Type Heat Pump Sound Level dBA 71 • Indoor Unit Spec Pdf DescriptionMultiposition Air Handler, Features include: 1-1/2 thru 4 tons Available for environmentally sound R-410A systems Factory installed piston metering device with Teflon ring Sweat connections Primary and secondary drain fittings Sweat connections Primary and secondary drain fittings Multiple electrical entry locations Time delay relay (TDR) Field installed heater packages from 5 kW - 30 kW available separately HUD approved for manufactured housing 208/230-1-60 supply voltage Units tested and certified by manufacturer to achieve a 2% or less leakage rate at 1.0 inch water column 1 inch thick insulation with R value of 4.2 Filter (washable) available as accessory ECM 5-speed motor Multiposition installation - upflow or horizontal left standard, horizontal right with minor modification (field convertible to downflow with available accessory kit) Low voltage circuit protective fuse (3 amp) inline on wire harness No Heat (Plug) Kit factory installed Specifications Weight 112.0 Pound (lb.) Length 22.1 Inches (in) Width 14.3 Inches (in) Height 42.7 Inches (in) Country of Origin USA UPC or Barcode 1PWAPM244A Hazardous Material No EPA Cert Required No UL Recognized Yes CFM 800 Refrigerant R-410a Suction Line Fitting 5/8 Blower Type ECM Minimum Circuit Amps 5.1 Maximum Fuse Size 15.0 Liquid Line Fitting 3/8 Nominal Capacity (Tons) 2 Phase Single Brand Ecotemp UL Listed Yes Tonnage 2 Cycle/Hertz 60 Voltage 208/230 VAC Blower Motor HP 1/3 HP Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 2 + 7 Send Shop for Grandaire and browse manuals and details of WCH3244GKB WAPM244A Air Conditioner Repair Grand Island, NE HVAC Contractors Urbandale, IA AC Company Blacksburg, VA HVAC Contractors Huntersville, NC Air Conditioning Companies Euclid, OH Certified Electrician Sioux Falls, SD Top
