Brand: Grandaire Save Listing| Email Listing | Share Product Name: Seer 17.5 3 TON Heat Pump Ecotemp with Mitsubishi Compressor - Inverter Technology Item#: WCH824364MKA1 WATPM364A1 Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required

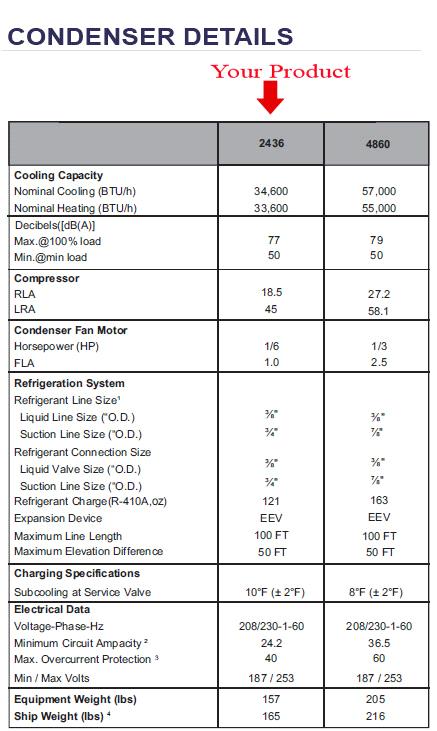

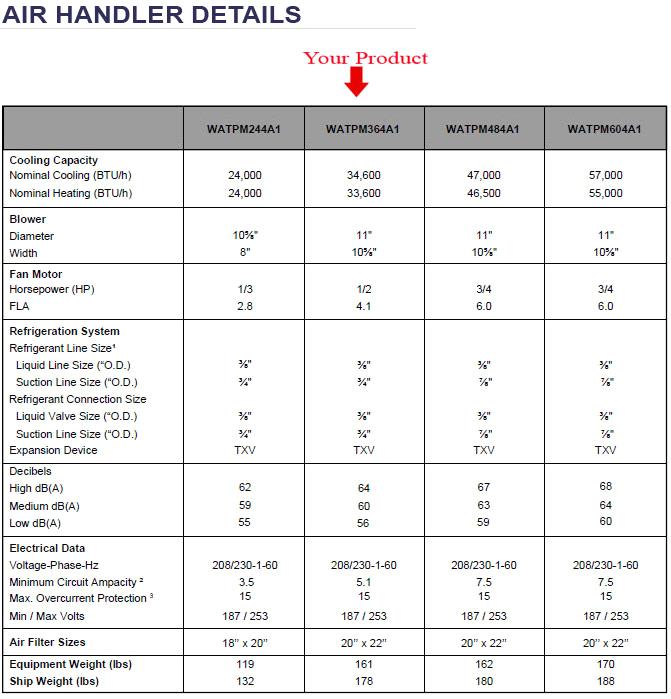

Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - WCH824364MKA1 WATPM364A1 Condenser Specifications • Indoor Unit Specifications Standard Air Handler Features: Multi-Speed ECM Blower Motor Factory Installed TXV Metering Multiposition Installation-upflow or horizontal right standard. Field convertible to horizontal left or downflow. Multiple electrical entry locations Field installed heater kits 5,8,10,15,20KW available Dual Front Panel Design for ease of maintenance Blower and coil easy slide out design for ease of maintenance. Fully insulated cabinet design Horizontal and vertical condensate drain pans standard Condensate drain pan is polymer with UVC inhibitor Primary and secondary condensate drain fittings Factory sealed cabinet certified to achieve 2% or less leakage rate at 1.0 inch water column Intergrated filter rack with tool-less door access AHRI and ETL listed WEIGHT 125.0000 Pound (lb.) WIDTH 19.6250 Inches (in) HEIGHT 46.5000 Inches (in) COUNTRY OF ORIGIN CHN UPC OR BARCODE N/A HAZARDOUS MATERIAL No EPA CERT REQUIRED No LENGTH 21.6250 Inches (in) BRAND GRANDAIRE EQUIPMENT TYPE Heat Pump TONNAGE 3 STAGE Three SEER 18 EER 12 MAXIMUM SEER 17.5 REFRIGERANT R-410a CFM 1180 CFM COOLING 1180 CFM HEATING 1180 COOLING CAPACITY 36000 HEATING CAPACITY 33600 VOLTAGE 208-230 VAC PHASE Single CYCLE/HERTZ 60 RATED CURRENT AMPS 1.04(60Pa,speed 3) CIRCUIT BREAKER - MIN AMPS 15 CIRCUIT BREAKER - MAX AMPS 15 MINIMUM CIRCUIT AMPS 5.1 MAXIMUM FUSE SIZE 15 BLOWER MOTOR TYPE ECM BLOWER MOTOR HP 1/2 HP BLOWER MOTOR RPM 1050 BLOWER MOTOR SPEEDS 5 FILTER SIZE 20" x 22" INCLUDES FILTER RACK Yes METERING DEVICE TXV RATED LOAD AMPS 4.1 DRAIN CONNECTION SIZE 3/4'' NPT SUCTION LINE FITTING 3/4" SUCTION LINE SIZE 3/4" ELECTRIC HEAT RANGE [KW] 5/8/10/15 LIQUID LINE FITTING 3/8" LIQUID LINE SIZE 3/8" BLOWER WHEEL 11" CERTIFICATIONS AHRI & ETL COLOR Gray SOUND LEVEL (DBA) 64 WARRANTY OFFERED 5 years parts limited warranty,no labor ENERGY STAR RATED No ETL CERTIFIED Yes ETL LISTED Yes LEED CERTIFIED No UL LISTED No UL RECOGNIZED No Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 5 + 6 Send Shop for Grandaire and browse manuals and details of WCH824364MKA1 WATPM364A1 Air Conditioning Repair Trenton, NJ HVAC Contractors Joliet, IL AC Technician Decatur, IL HVAC Contractors Florissant, MO Air Conditioning Service Anaheim, CA Certified Electrician Lafayette, LA Top
