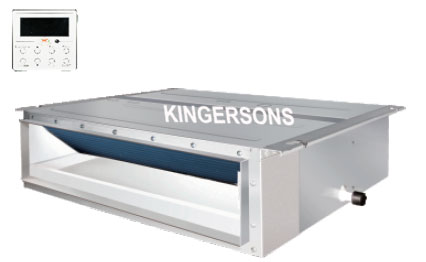

Processing. Please wait. Brand: YMGI Save Listing| Email Listing | Share Product Name: YMGI Concealed Duct 9,000 BTU Item#: WMMS-09EF-V2B(59)2 Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - WMMS-09EF-V2B(59)2 Description (59)2 DC Inverter Multiple Zone-Indoor Units-Low Profile Fan Coil Unit EF 09K Btu/h, 208-230/1/60 Unit / Conditions WMMS-09EF-V2B(59)2 Power Supply Voltage/Ph/Hz 208-230/1/60 Allowed Voltage Range 187-253V Cooling Capacity (Btu/h) High/Standard/Low 10700/8500/4600 Heating Capacity (Btu/h) ID 70/60, OD 47/43F 9500 ID 70/60, OD 17/15F 8800 ID 70/60, OD 17/5F 8000 SEER Btu/h.W 16 HSPF Btu/h.W 8.2 Duhumidifying Capacity Pints/Hr. 1.7 Air Flow (CFM) High/Medium/Low 260/180/150 Air-throw (Ft.) External Static Pressure Horizontal Installation 25-20 Upon Mounting Height/Speed/Temp. Water In. 0 Sound Level Pressure dB(A) (H/M/L) 37/34/31 Power dB(A) (H/M/L) 47/44/41 Fan Motor Model FG30A Shaft Double Speed (RMP, H/M/L) 970/760/640 Output (W) 40 Input (W) 80 Capacitor (uF) 1 Fan Wheel Type-Piece Centrifugal-2 Diameter x Width (In.) 5.5 x 5.3 Swing/Step Motor Model NA Piece NA Output (W) NA Input Power of Ele. Heater Type-W NA Electrical Protection Fuse PCB/Transformer T3.15A 250V / 0.2A Evaporator Coil Type Alu. Fin/Inner Grooved Copper Tube Color Blue Copper Line Connections Sealed by Dry Nitrogen Yes Flare/Nut-Liuqid + Gas 1/4? + 3/8? Drain Hose Connection OD (In.) 1 Condensate Pump Installed-Lift (In.) NA Refrigerant Environmental Friendly R410A Filter Type-Feature Standard-Washable Size WxH (In.) – Qty. 23.7 x 7.6 – 1 Clean Coil Surface Anti-Mildew Function YES Pre-heating Function Anti-Cold Blowing YES Memory of Previous Set-ups Power is Lost/Resumed YES Auto-Restart Function If Power is Resumed YES Unit Dimensions Net WxHxD (In.) 27.6 x 24.2 x 7.9 Package WxHxD (In.) 35.0 x 29.1 x 11.4 Unit Weight Net (LBs) 48 Packaged (LBs) 59 Loading Capacity 20’/40’/40’HQ 108/234/234 Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 5 + 1 Send Shop for YMGI and browse manuals and details of WMMS-09EF-V2B(59)2 Air Conditioner Repair Wheaton, IL HVAC Contractors Sierra Vista, AZ AC Company Quincy, IL HVAC Contractors Cathedral City, CA Air Conditioning Companies Wylie, TX Certified Electrician Tigard, OR Top Watch This Item Your Phone Number: Your Email: Message here: Make an offer Quantity you would like to buy: 1 2 3 4 5 6 7 8 9 10 How much would you like to pay for each unit: Type your Message: Shipping Address: URL of the website where you saw cheaper price Or better deal: Your email address: Your phone number: E-mail a friend about this item Your friend email: Your Email: Message here: Email For Price Your Phone Number: Your Email: Shipping Zip Code: How soon do you need this product?: Immidiately Within a week Within couple of months Just looking for price Message here:
Brand: YMGI Save Listing| Email Listing | Share Product Name: YMGI Concealed Duct 9,000 BTU Item#: WMMS-09EF-V2B(59)2 Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required
Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - WMMS-09EF-V2B(59)2 Description (59)2 DC Inverter Multiple Zone-Indoor Units-Low Profile Fan Coil Unit EF 09K Btu/h, 208-230/1/60 Unit / Conditions WMMS-09EF-V2B(59)2 Power Supply Voltage/Ph/Hz 208-230/1/60 Allowed Voltage Range 187-253V Cooling Capacity (Btu/h) High/Standard/Low 10700/8500/4600 Heating Capacity (Btu/h) ID 70/60, OD 47/43F 9500 ID 70/60, OD 17/15F 8800 ID 70/60, OD 17/5F 8000 SEER Btu/h.W 16 HSPF Btu/h.W 8.2 Duhumidifying Capacity Pints/Hr. 1.7 Air Flow (CFM) High/Medium/Low 260/180/150 Air-throw (Ft.) External Static Pressure Horizontal Installation 25-20 Upon Mounting Height/Speed/Temp. Water In. 0 Sound Level Pressure dB(A) (H/M/L) 37/34/31 Power dB(A) (H/M/L) 47/44/41 Fan Motor Model FG30A Shaft Double Speed (RMP, H/M/L) 970/760/640 Output (W) 40 Input (W) 80 Capacitor (uF) 1 Fan Wheel Type-Piece Centrifugal-2 Diameter x Width (In.) 5.5 x 5.3 Swing/Step Motor Model NA Piece NA Output (W) NA Input Power of Ele. Heater Type-W NA Electrical Protection Fuse PCB/Transformer T3.15A 250V / 0.2A Evaporator Coil Type Alu. Fin/Inner Grooved Copper Tube Color Blue Copper Line Connections Sealed by Dry Nitrogen Yes Flare/Nut-Liuqid + Gas 1/4? + 3/8? Drain Hose Connection OD (In.) 1 Condensate Pump Installed-Lift (In.) NA Refrigerant Environmental Friendly R410A Filter Type-Feature Standard-Washable Size WxH (In.) – Qty. 23.7 x 7.6 – 1 Clean Coil Surface Anti-Mildew Function YES Pre-heating Function Anti-Cold Blowing YES Memory of Previous Set-ups Power is Lost/Resumed YES Auto-Restart Function If Power is Resumed YES Unit Dimensions Net WxHxD (In.) 27.6 x 24.2 x 7.9 Package WxHxD (In.) 35.0 x 29.1 x 11.4 Unit Weight Net (LBs) 48 Packaged (LBs) 59 Loading Capacity 20’/40’/40’HQ 108/234/234 Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 5 + 1 Send Shop for YMGI and browse manuals and details of WMMS-09EF-V2B(59)2 Air Conditioner Repair Wheaton, IL HVAC Contractors Sierra Vista, AZ AC Company Quincy, IL HVAC Contractors Cathedral City, CA Air Conditioning Companies Wylie, TX Certified Electrician Tigard, OR Top
