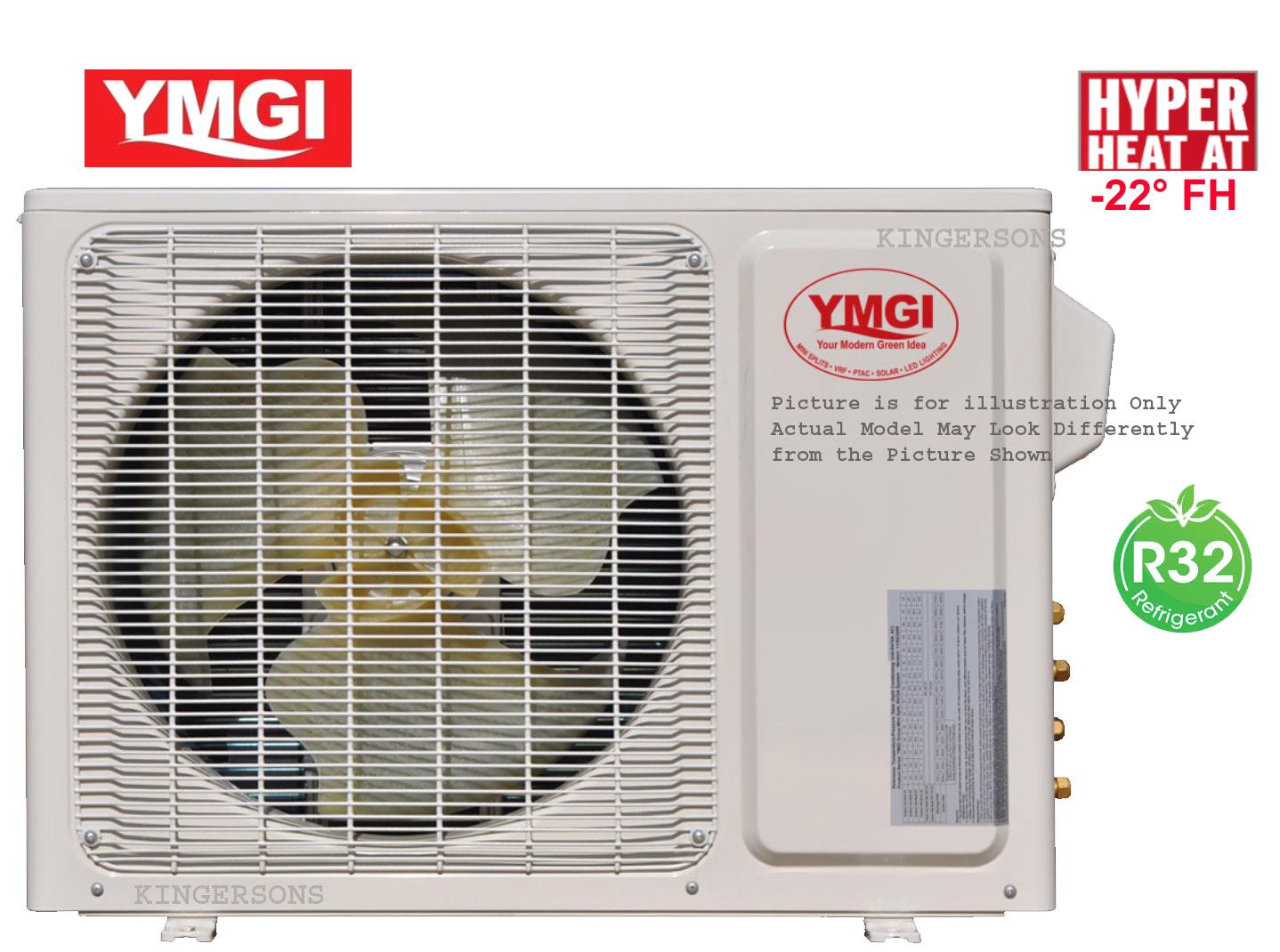

YMGI Specifications: DC Inverter Mini Split Heat Pump-
Multiple Zone-(59)3 Outdoor Units 23SEER
|
| Model |
Units |
(59)5 Series |
| Cooling Capacity Rating-StandardComp. Speed |
Btu/h |
42400 |
| Min./Max. Cooling Capacity |
Btu/h |
8189 / 42438 |
| Heating Capacity Rating-StandardComp. Speed |
Btu/h |
30000 |
| Min./Max. Heating Capacity |
Btu/h |
8189 / 42414 |
| Max. Allowed IDU Qty./Capacity Total |
# / Btu/h |
4 / 42,000 |
| EER W/W, (Btu/h)/W |
W/W |
3.66 / 12.5 |
| COP W/W, (Btu/h)/W |
W/W |
3.74 / 12.76 |
| SEER / HSPF |
- |
23.00 / 11.00 |
| Air Flow Volume Buy from kingersons |
CFM |
2354 |
| Sound Pressure / Power Level |
dB(A) |
59 / 69 |
| Power Supply |
V/Ph/Hz |
208-230/1/60 |
| Power Cable Conductor Minimum Size |
AWG |
AWG12, Following NEC |
| Recommended HVAC Type CircuitBreaker Size |
Amp. |
30 |
| Power Input Cooling / Heating / Rated |
KW |
2.27 / 2.35 / 3.80 |
| Current Input Cooling / Heating / Rated |
A |
9.87 / 10.22 / 16.86 |
| Compressor Type, Model |
- |
Inverter Rotarty, LD QXAS-D32zX090A |
| Compressor Capacity / Input |
W |
12300 / 4150 |
| Compressor RLA / LRA |
A |
13.9 / - |
| Compressor Thermal Protector |
- |
Exterior 1NT11L—6233 |
| Compressor Crankcase Heater |
W |
40 |
| Compressor Oil Type, Charge |
-, OZs |
FV50S, 35.2 |
| De-Ice/Snow Heater Power Input |
W |
96 |
| De-Ice/Snow Heater Current |
A |
0.4 |
| Fan Type / Qty. / Diameter-Height |
- |
Axial-flow / 1 /D550-H120mm |
| Motor Model / Type |
- |
SWZ150A, DC |
| Motor Insulation Class, Safe Class |
- |
E, IPX4 |
| Fan Motor Drive Type, Speed |
- |
Director Drive, 850 |
| Fan Motor Power Output / Input |
W |
100 / 150 |
| Motor Full Load Amp (FLA) |
A |
0.68 |
| Condenser Materials Buy from kingersons |
- |
Aluminum Fin-Copper Tube |
| Permissible Operating Pressure for theDischarge/Suction Sides |
PSI |
600 / 360 |
| High/Low Pressure Overload Protector |
PSI |
580 / - |
| Cooling Operation AmbientTemperature Range |
F |
0 ~ 118 |
| Heating Operation AmbientTemperature Range |
F |
-22 ~ 75 |
| Defrosting Method of Heat Pump inLow Temperature Ambient |
-- |
Automatic Reversing, FanCycling |
| Pressure Maitenance Method in LowTemperature Cooling |
-- |
Automatic Fan SpeedControl, Cycling |
| Overload Protector |
- |
Current+Temperature |
| Designed for Climate Type, MoistureProtection |
- |
T1, IPX4 |
| Refrigerant, Charge |
LBs |
R410A, 6.2 |
| Metering Device Buy from kingersons |
- |
Electronic expansion valve |
| Flare/Nut Valve Size-Liquid |
Inch |
1/4, 1/4, 1/4, 1/4 |
| Flare/Nut Valve Size-Gas |
Inch |
3/8, 3/8, 3/8, 3/8 |
| Min. Allowed Copper Line Length/Unit |
Ft. |
15 |
| Max. Allowed Copper Line Length-outdoor to last indoor unit |
Ft. |
80 |
| Max. Elevation Difference Allowed-outdoor unit is below all indoor units |
Ft. |
50, Oil Trap is Not Needed |
| Max. Elevation Difference Allowed-outdoor unit is above indoor units |
Ft. |
50, Oil Trap is SuggestedEvery 25' |
| Max. Copper Line Length (all together) |
Ft. |
220 |
| No Additional Refrigerant Needs to beAdded, If Copper Line Length Total isLess Than |
Ft. |
120 |
| Refrigerant Charge Rate, If Needed, byWeight/Ft. of Extra Liquid Line Length |
Ozs/Ft. |
2.32 |
| Dimension of Unit Outline (W×D×H) |
Inch |
38.6x16.8x31.1 |
| Dimension of Package (W×D×H) |
Inch |
40.6x19.2x33.7 |
| Weight-Net / Gross Buy from kingersons |
LBs |
154 / 170 |
| Loading Quantity (20’/40GP/40HQ) |
Units |
44 / 96 / 144 |
