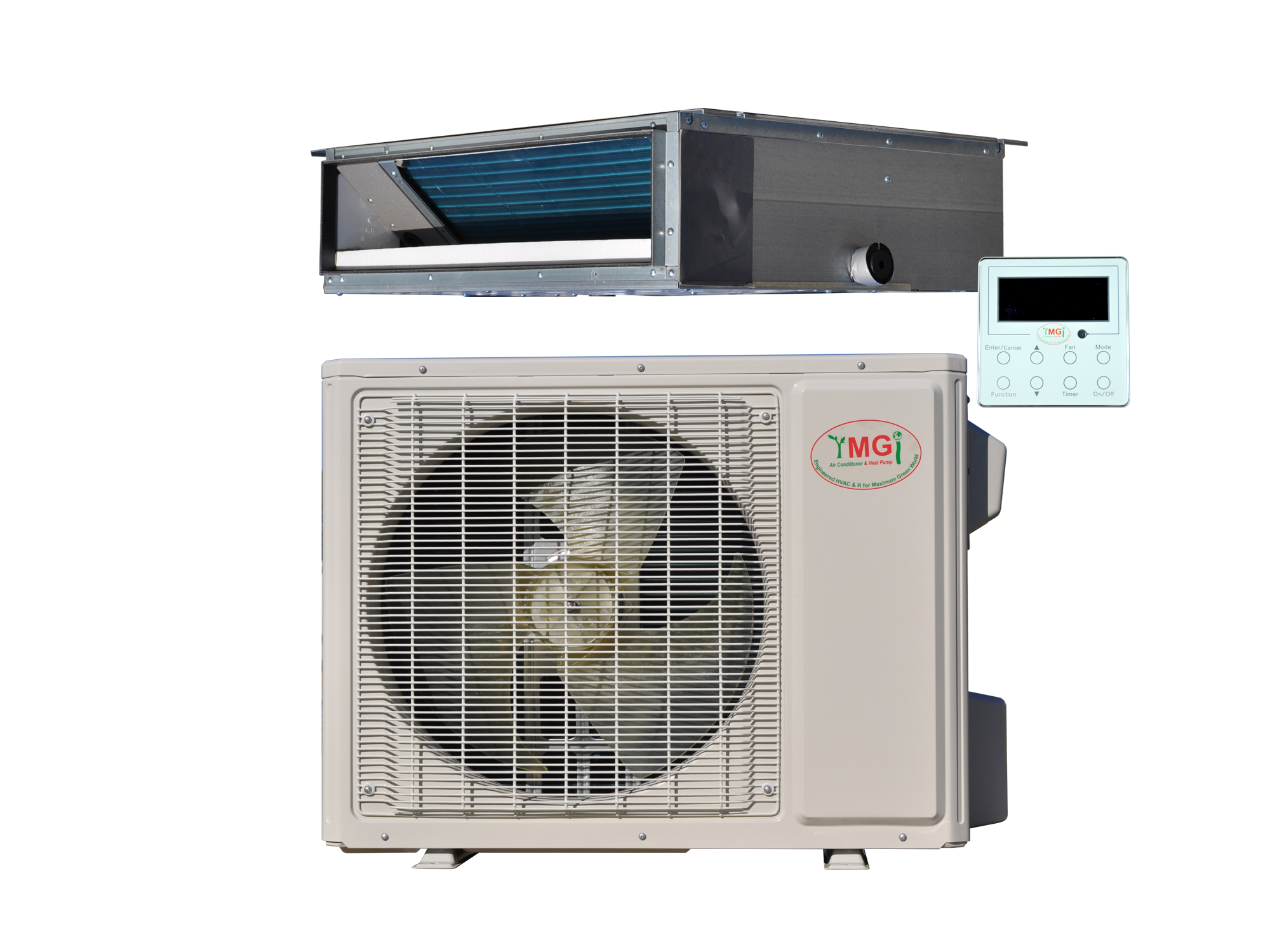

Product Name: YMGI SINGLE ZONE CONCEALED DUCT 12,000 BTU SEER 22 1 TON Cool and Heat Pump

Item#: ymgi-cassette-30CH-12EF
Reg Price: $3,126.86
Your Price: $2,418.90
Choose QTY:
watch make

Product Details - ymgi-cassette-30CH-12EF


Description

Air is drawn through the center grilles/filters and then discharged at 4 vents in 4/8 directions. Less than 24? and so will fit into the 24? ceiling joints.

Description

Model Number Unit / Conditions WMMS-12EC-V2B(59)2
Power Supply Voltage/Ph/Hz 208-230/1/60
Allowed Voltage Range 187-253V
Cooling Capacity (Btu/h) High/Standard/Low 13900/12000/5200
Heating Capacity (Btu/h) ID 70/60, OD 47/43F 13000
ID 70/60, OD 17/15F 11600
ID 70/60, OD 17/5F 9000
SEER Btu/h.W 16
HSPF Btu/h.W 8.2
Duhumidifying Capacity Pints/Hr. 2.96
Air Flow (CFM) High/Medium/Low 353/312/245
Air-throw (Ft.) Horizontal Installation 25-18 Upon Mounting Height/Speed/Temp.
External Static Pressure Water In. 0
Sound Level Pressure dB(A) (H/M/L)) 39/37/35
Power dB(A) (H/M/L) 49/47/45
Fan Motor Model FN11T-2
Shaft Single
Speed (RMP, H/M/L) 700/600/5151
Output (W) 11
Input (W) 50
Capacitor (uF) 1
Fan Wheel Type-Piece Centrifugal-1
Diameter x Height (In.) 11.1 x 5.8
Swing/Step Motor Model MP35CB
Piece 2
Output (W) 2
Input Power of Ele. Heater NA
Electrical Protection Fuse T3.15A 250V / 0.2A
Evaporator Coil Type Alu. Fin/Inner Grooved Copper Tube
Color Blue
Copper Line Connections Sealed by Dry Nitrogen Yes
Flare/Nut-Liuqid + Gas 1/4? + 3/8?
Drain Hose Connection OD (In.) 1.22
Condensate Pump Installed-Lift (In.) Yes-25
Refrigerant Environmental Friendly R410A Yes
Filter Type-Feature Standard-Washable
Size WxH (In.) – Qty. 13.56 x 13.13 – 1
Clean Coil Surface Anti-Mildew Function Yes
Pre-heating Function Anti-Cold Blowing Yes
Memory of Previous Set-ups Power is Lost/Resumed Yes
Auto-Restart Function If Power is Resumed Yes
Unit Dimensions Net L x W x H (In.) 22.4 x 22.4 x 9.1
Package L x W x H (In.) 33.4 x 28.7 x 12.2
Unit Weight Net (LBs) 39.7
Packaged (LBs) 50.7
Face Panel Dimensions Net L x W x H (In.) 25.6 x 25.6 x 2
Package L x W x H (In.) 28.7 x 26.4 x 4
Face Panel WeightNet (LBs) 5.5
Packaged (LBs) 8.1
Loading Capacity 20’/40’/40’HQ 102/209/246

YMGI Specifications: DC Inverter Mini Split Heat Pump-Multiple Zone-(59)4 Outdoor Units 22 SEER
Model Units WMMS-30CH-V2B(59)4
Cooling Capacity Rating-Standard Comp. Speed Btu/h 18000
Min./Max. Cooling Capacity Btu/h 6998 / 21000
Heating Capacity Rating-Standard Comp. Speed Btu/h 19000
Min./Max. Heating Capacity Btu/h 7000 / 22600
Max. Allowed IDU Qty./Capacity Total # / Btu/h 2 / 30,000
EER W/W, (Btu/h)/W W/W 3.66 / 12.50
COP W/W, (Btu/h)/W W/W 3.66 / 12.50
SEER / HSPF - 22.00 / 10.50
Air Flow Volume CFM 1883
Sound Pressure / Power Level dB(A) 56 / 63
Power Supply V/Ph/Hz 208-230/1/60
Power Cable Conductor Minimum Size AWG AWG 14, Following NEC
Recommended HVAC Type Circuit Breaker Size Amp. 20
Power Input Cooling / Heating / Rated KW 1.44 / 1.52 / 2.80
Current Input Cooling / Heating / Rated A 6.26 / 6.61 / 12.42
Compressor Type, Model - Inverter Rotary, LD QXA- B141zF030A
Compressor Capacity / Input W 4320 / 1440
Compressor RLA / LRA A 10.82 / -
Compressor Thermal Protector KINGERSONS - Exterior 1NT11L—6233
Compressor Crankcase Heater W 25
Compressor Oil Type, Charge -, OZs RB68EP, 13.7
De-Ice/Snow Heater Power Input W 96
De-Ice/Snow Heater Current A 0.4
Fan Type / Qty. / Diameter-Height - Axial-flow / 1 /D550-H65mm
Motor Model / Type - LW60M-ZL, DC
Motor Insulation Class, Safe Class - E, IPX4
Fan Motor Drive Type, Speed - Director Drive, 630
Fan Motor Power Output / Input W 60 / -
Motor Full Load Amp (FLA) A -
Condenser Materials - Aluminum Fin-Copper Tube
Permissible Operating Pressure for the Discharge/Suction Sides PSI 600 / 360
High/Low Pressure Overload Protector PSI 580 / -
Cooling Operation  Ambient Temperature Range F 0 ~ 118
Heating Operation  Ambient Temperature Range F -4 ~ 75
Defrosting Method of Heat Pump in
Low Temperature Ambient		 -- Automatic Reversing, Fan
Cycling
Pressure Maitenance Method in Low
Temperature Cooling		 -- Automatic Fan Speed
Control, Cycling
Overload Protector - Current+Temperature
Designed for Climate Type, Moisture Protection - T1, IPX4
Refrigerant, Charge LBs R410A, 3.5
Metering Device KINGERSONS - Electronic expansion valve
Flare/Nut Valve Size-Liquid Inch 1/4, 1/4
Flare/Nut Valve Size-Gas Inch 3/8, 3/8
Min. Allowed Copper Line Length/Unit Ft. 15
Max. Allowed Copper Line Length-
outdoor to last indoor unit		 Ft. 65
Max. Elevation Difference Allowed-
outdoor unit is below all indoor units		 Ft. 35, Oil Trap is Not Needed
Max. Elevation Difference Allowed-
outdoor unit is above indoor units		 Ft. 35, Oil Trap is Suggested
Every 18'
Max. Copper Line Length (all together) Ft. 130
No Additional Refrigerant Needs to be Added, If Copper Line Length Total is Less Than Ft. 60
Refrigerant Charge Rate, If Needed, by
Weight/Ft. of Extra Liquid Line Length		 Ozs/Ft. 2.32
Dimension of Unit Outline (W×D×H) Inch 37.6x15.6x27.6
Dimension of Package (W×D×H) Inch 40.5x18.0x29.5
Weight-Net / Gross LBs 115 / 124
Loading Quantity (20’/40GP/40HQ) Units 81 / 171 / 171
